Introducer set
Desivalve
Popis
Catheter introducer with haemostatic valve. Catheter introducer with haemostatic valve for introducing cardiovascular catheters such as Swan-Ganz or… Přečtěte si více
Indikace
Catheter introducer with hemostatic valve for placement of cardiovascular catheters (e.g. temporary pacing catheter, measurement of pulmonary artery pressure, measurement of cardiac output...)
Popis
Catheter introducer with haemostatic valve.Catheter introducer with haemostatic valve for introducing cardiovascular catheters such as Swan-Ganz or temporary pacing catheters
- XRO polyethylene sheath provided with colour coded stress-relief collar and fixation wing
- Side arm for injecting medication or venous pressure monitoring
- Non-touch catheter sleeve (Asept-Cath) incorporates a bayonet lock mechanism for secure and rapid attachment to the body of the Desivalve .Distal compression hub minimises the risk of catheter migration

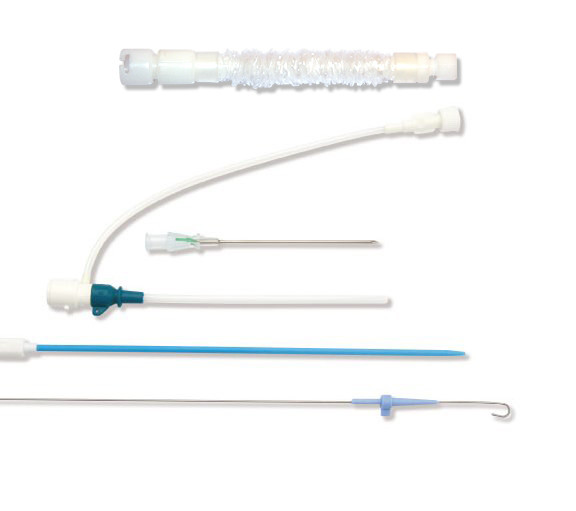

Tray presentation containing:
- 1 dilator and sheath
- 1 non-touch handling sleeve (Asept-Cath)
- 1 introducer needle
- 1 “J” guidewire.
10/40
Reference a funkce
| For catheter | Puncture needle | Guidewire | Sheath | Colour code | Balení | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Size Fr | of ext.Ø mm | Ext. Ø mm | G G | Length mm | Ext. Ø mm | Length cm | Length cm | - colour | Jednotky/balení | Jednotky/karton |
| 1149.05 | 5 | 1.7 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Grey | 10 | 40 | |
| 1149.06 | 6 | 2.0 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Green | 10 | 40 | |
| 1149.07 | 7 | 2.3 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Red | 10 | 40 | |
| 1149.08 | 8 | 2.7 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Blue | 10 | 40 | |
| 1149.09 | 9 | 3.0 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Yellow | 10 | 40 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
hemodynamic_management_catalogue
-
Návod k použití
