Introducer set
Introduction set with non-peelaway sheath
Popis
Introducer (PE) for silicone or cardiovascular catheters. Device placed in the vascular system by the Seldinger technique for introducing… Přečtěte si více
Indikace
The Desilet is a device placed in the vascular system (mainly internal jugular, subclaviar, femoral vein) by the Seldinger technique and allowing the placement of cardiovascular or silicone I.V. catheters (without cuff and with removable hub).
Popis
Introducer (PE) for silicone or cardiovascular catheters.Device placed in the vascular system by the Seldinger technique for introducing cardiovascular or silicone catheters.

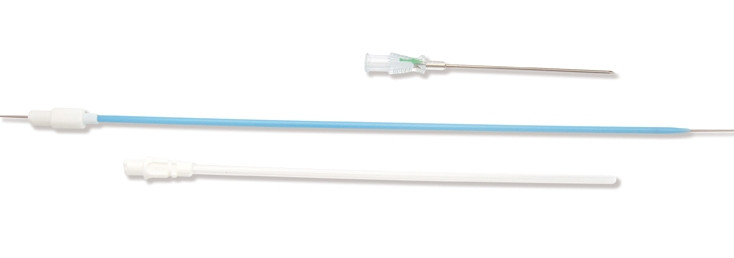

Presented in a rigid tubular pack containing:
- 1 introducer needle Ø 1.0 x 1.26 mm - 18G - 68 mm long (except for code 1129.04: Ø 0.9 mm - 38 mm long),
- 1 straight guidewire Ø 0.97 mm - 38,5 cm long (except for code 1129.04: Ø 0.54 mm - 30 cm long)
- 1 dilator + sheath assembly.
10/150
Reference a funkce
| Dilator | For catheter | Needle | Guidewire | Sheath | Balení | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Colour code | of ext.Ø mm | Size Fr | Length mm | Ext. Ø mm | Ext. Ø mm | Length cm | Length cm | Jednotky/balení | Jednotky/karton |
| 1129.04 | Violet | 1.3 | 4 | 38 | 0.9 | 0.54 | 30 | 14.5 | 10 | 150 | |
| 1129.05 | Grey | 1.7 | 5 | 68 | 1.26 | 0.97 | 38.5 | 14.5 | 10 | 150 | |
| 1129.06 | Green | 2.0 | 6 | 68 | 1.26 | 0.97 | 38.5 | 14.5 | 10 | 150 | |
| 1129.07 | Pink | 2.3 | 7 | 68 | 1.26 | 0.97 | 38.5 | 14.5 | 10 | 150 | |
| 1129.08 | Blue | 2.7 | 8 | 68 | 1.26 | 0.97 | 38.5 | 14.5 | 10 | 150 | |
| 1129.09 | Yellow | 3.0 | 9 | 68 | 1.26 | 0.97 | 38.5 | 14.5 | 10 | 150 | |
| 1129.10 | White | 3.3 | 10 | 68 | 1.26 | 0.97 | 38.5 | 14.5 | 10 | 150 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
