Syringes
Transparent syringes
Popis

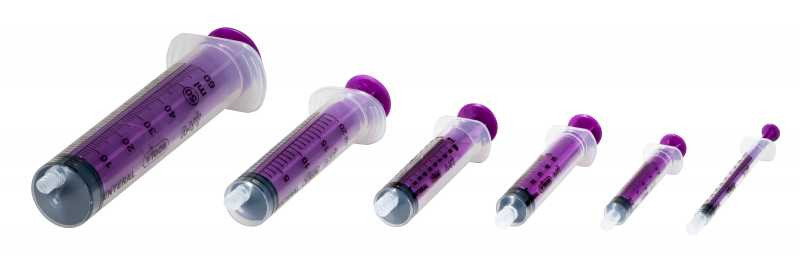

Safe enteral feeding syringes with a Nutrisafe2 connection designed for neonates and children. The Nutrisafe2 connection is compliant with ISO… Přečtěte si více
Indikace
Enteral nutrition of neonates, infants and children in NICU, PICU, Neonatalogy and Paediatrics.
Popis
Safe enteral feeding syringes with a Nutrisafe2 connection designed for neonates and children.The Nutrisafe2 connection is compliant with ISO 80369-1. Consequently, accidental misconnections between Nutrisafe2 connectors and other small-bore connectors intended for other clinical applications (venous access, limb cuff, urology, respiratory… as described in ISO80369) are mitigated and the right administration route is respected.
6 volumes are available: 1ml (code 1015.013), 2.5ml (code 1015.023), 5ml (code 1015.053), 10ml (code 1015.103), 20ml (code 1015.213), 60ml (code 1015.603).
The Nutrisafe2 syringes are fitted with a purple-colored plunger and a “A-VY Nutrisafe2 VYGON ENTERAL” marking, enabling instant identification for Nutrisafe2 enteral use.
NB: The 1ml marking doesn’t include “A-VY” due to the lack of space on the barrel.
The Nutrisafe2 connection is centered for the syringe codes: 1015.013 (1ml), 1015.023 (2.5ml), 1015.053 (5ml).The Nutrisafe2 connection is offset for the syringe codes: 1015.103 (10ml), 1015.213 (20ml) et 1015.603 (60ml).
The graduation is:
- Every 0.01ml for the 1ml syringes (code 1015.013),
- Every 0.1ml for the 2.5ml syringes (code 1015.023),
- Every 0.2ml for the 5ml and 10ml syringes (codes 1015.053, 1015.103),
- Every 1ml for the 20ml and 60ml syringes (codes 1015.213, 1015.603).
Syringe driver settings for the A-VY Nutrisafe2 syringes manufactured by Artsana:
- 1015.103: A-VY
- 1015.213: A-VY or BD Plastipak
- 1015.603: A-VY or BD Plastipak or Nutrifit or VY-P or Pentaferte or Segap
Reference a funkce
| Syringe | Balení | |||||
|---|---|---|---|---|---|---|
| Favourites | Kód | Volume ml | Connection | Graduation (every) ml | Jednotky/balení | Jednotky/karton |
| 1015.013 | 1 | Centered,non lock. | 0.01 | 160 | 1600 | |
| 1015.014 | 1 | Centered, non lock | 0.01 | 100 | 2400 | |
| 1015.023 | 2.5 | Centered,non lock. | 0.1 | 130 | 1300 | |
| 1015.024 | 2.5 | Centered, non lock | 0.1 | 100 | 2000 | |
| 1015.053 | 5 | Centered,lockable | 0.2 | 100 | 1000 | |
| 1015.054 | 5 | Centered, lockable | 0.2 | 100 | 1600 | |
| 1015.103 | 10 | Offset, lockable | 0.2 | 100 | 1000 | |
| 1015.104 | 10 | Centered, lockable | 0.2 | 100 | 1000 | |
| 1015.204 | 20 | Centered, lockable | 0.5 | 80 | 800 | |
| 1015.213 | 20 | Offset, lockable | 1 | 100 | 600 | |
| 1015.214 | 20 | Offset, lockable | 0.5 | 80 | 800 | |
| 1015.603 | 60 | Offset, lockable | 1 | 50 | 300 | |
| 1015.604 | 60 | Offset, lockable | 1 | 60 | 240 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
Dokumentace
-
Brochure Nutrisafe2
-
Enteral nutrition catalogue
-
FAQ - The new ISO standard for enteral nutrition ISO 80369-3
-
Návod k použití
