Multi-lumen CVC
Multicath 3 - 5.5Fr
Popis
Paediatric Multicath 3 is a radiopaque 5.5Fr polyurethane central venous catheter inserted in the internal jugular, subclavian or femoral vein using… Přečtěte si více
Indikace
Multicath 3 is a triple-lumen CVC inserted in the internal jugular, subclavian or femoral vein using the Seldinger technique allowing:
- Infusion of parenteral nutrition, drugs administrations, hyperosmolar solutions,
- Transfusion of blood, or blood products,
- Blood samplings,
- Simultaneous administration of medication even those presenting chemical incompatibilities,
- Central venous pressure measurements.
Popis
Paediatric Multicath 3 is a radiopaque 5.5Fr polyurethane central venous catheter inserted in the internal jugular, subclavian or femoral vein using the Seldinger technique for paediatric use. Tri lumen Multicath 5.5 Fr consists of three lumen completely separated on the total length of the catheter. Each lumen leads, at the distal tip of the catheter, to a distinct hole. At the proximal end, the 3 lumen of the catheter are connected to extension tubes of different lengths; besides each extension tube is marked "DISTAL", "MEDIAL" or "PROXIMAL" and includes a different colored hub so as to identify easily the different infusion lines.The user can choose between 2 types of introducer: 1 echogenic puncture needle or 1 short I.V. cannula.

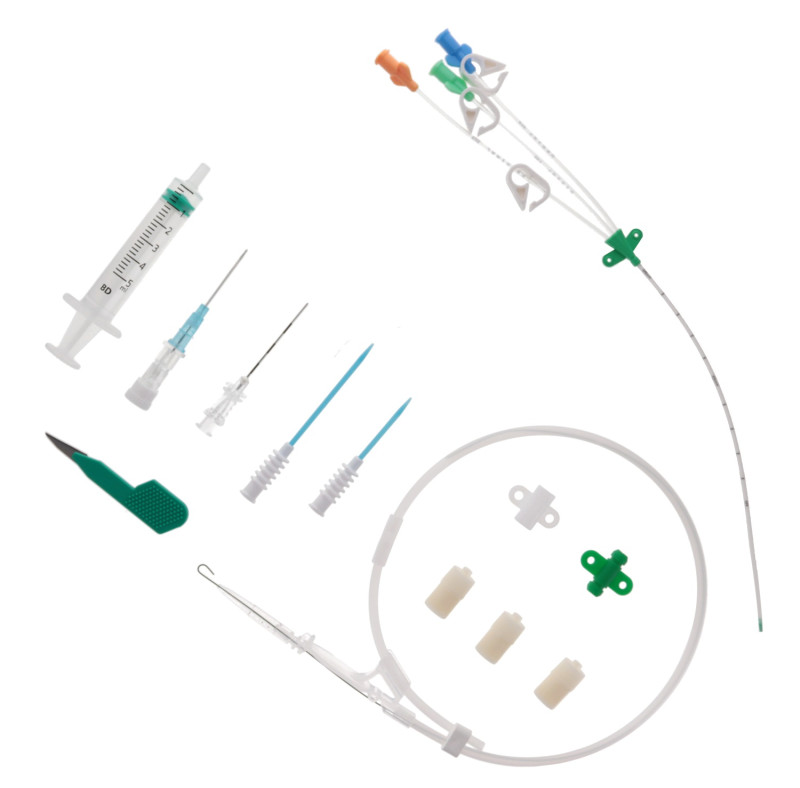

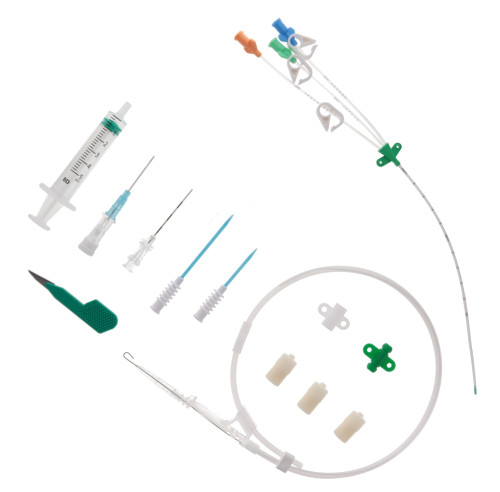

Multicath 3 is presented in a rigid blister pack containing:
- 1 triple-lumen radiopaque catheter with intermediate hub fitted with soft fixation wings, centimetric markings from 5 cm from the distal tip Ø 5,5Fr - Length: 8 cm - 12,5 cm - 15 cm - 20 cm or 30 cm. Supple distal end.
- 1 echogenic introducer needle ext. Ø 0.8 mm - 21G - Length 38 mm,
- 1 short IV catheter 22G, Length 25 mm,
- 1 J teflon-coated Nitinol guidewire with guide advancer , Length 40 cm for codes 155.508, 155.512 and 155.515 and 70 cm for codes 155.520 and 155.530,
- 2 dilators 6Fr (Length 3 cm and 5 cm),
- 3 injection caps,
- 1 5 ml syringe,
- 1 secondary fixation wing,
- 1 scalpel.
Reference a funkce
| Catheter | Distal lumen | Medial lumen | Proximal lumen | Guidewire | Balení | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Length cm | Ø Fr | Ext. Ø mm | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Ø mm | Length cm | Jednotky/balení | Jednotky/karton |
| 155.508 | 8 | 5.5 | 1.8 | 27 | 0.22 | 19 | 16 | 0.21 | 21 | 17 | 0.24 | 21 | 0.46 | 40 | 5 | 45 | |
| 155.512 | 12.5 | 5.5 | 1.8 | 24 | 0.24 | 19 | 12 | 0.23 | 21 | 13 | 0.23 | 21 | 0.46 | 40 | 5 | 45 | |
| 155.515 | 15 | 5.5 | 1.8 | 23 | 0.26 | 19 | 8 | 0.24 | 21 | 8 | 0.24 | 21 | 0.46 | 40 | 5 | 45 | |
| 155.520 | 20 | 5.5 | 1.8 | 20 | 0.28 | 19 | 8.4 | 0.26 | 21 | 8.8 | 0.27 | 21 | 0.46 | 70 | 5 | 45 | |
| 155.530 | 30 | 5.5 | 1.8 | 17 | 0.39 | 19 | 5.5 | 0.28 | 21 | 5.8 | 0.29 | 21 | 0.46 | 70 | 5 | 45 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
hemodynamic_management_catalogue
-
Brochure Paediatric Multicath & Multistar
-
Návod k použití
