Antimicrobial multi-lumen CVC
Multistar 2 - 4.5Fr
Popis
Antimicrobial paediatric double-lumen central venous catheter impregnated with antibiotics (Rifampicin and Miconazole) Code 6203: centimetre markings… Přečtěte si více
Indikace
Antimicrobial double-lumen paediatric central venous catheter
Popis

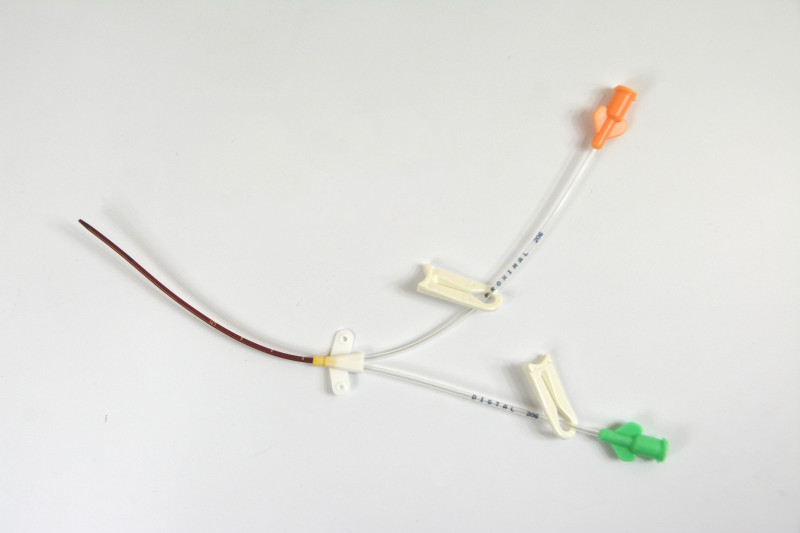

Antimicrobial paediatric double-lumen central venous catheter impregnated with antibiotics (Rifampicin and Miconazole) Code 6203: centimetre markings from 5 to 12 cm, (code 6202: no markings). The user can choose from 2 types of introducer, i.e. needle or I.V. cannula. The diameter of the distal lumen is the same as that of the proximal lumen: 2 x 20G. Kink-resistant Nitinol “J” guidewirePresented in a rigid blister pack containing:
- 1 double-lumen catheter with Robert clamps

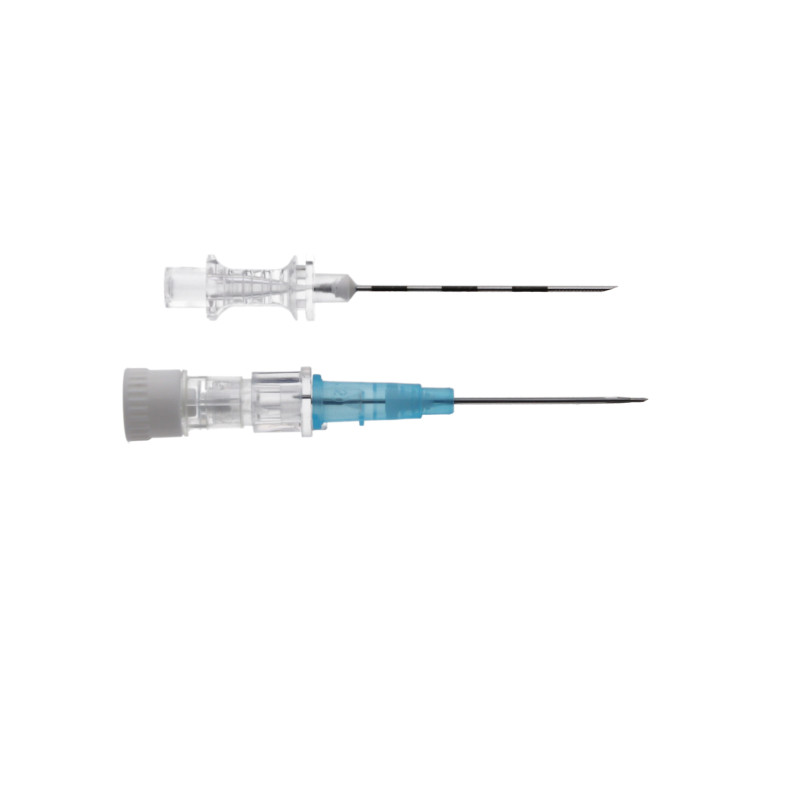

- 1 introducer echogenic needle 21G - Length 40mm
- 1 short I.V. cannula 22G - Length 25mm
- 1 “J” guidewire Ø 0.46mm, 40cm long with Thumbfeed guide advancer
- 2 dilators (Length 38 mm and 62 mm)
- 1 secondary fixation wing
- 2 injection caps
- 1 scalpel
- 1 syringe 5ml
Reference a funkce
| Catheter | Distal lumen | Proximal lumen | Guidewire | Balení | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Length cm | Ø Fr | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Length cm | Ø mm | Jednotky/balení | Jednotky/karton |
| 6202.063 | 6 | 4.5 | 22 | 0.20 | 20 | 24 | 0.20 | 20 | 40 | 0.46 | 5 | 45 | |
| 6203.083 | 8 | 4.5 | 19 | 0.22 | 20 | 22 | 0.22 | 20 | 40 | 0.46 | 5 | 45 | |
| 6203.123 | 12.5 | 4.5 | 15 | 0.25 | 20 | 18 | 0.25 | 20 | 40 | 0.46 | 5 | 45 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
hemodynamic_management_catalogue
-
Brochure Paediatric Multicath & Multistar
-
Návod k použití
