Umbilical catheters
Single Lumen PUR
Popis

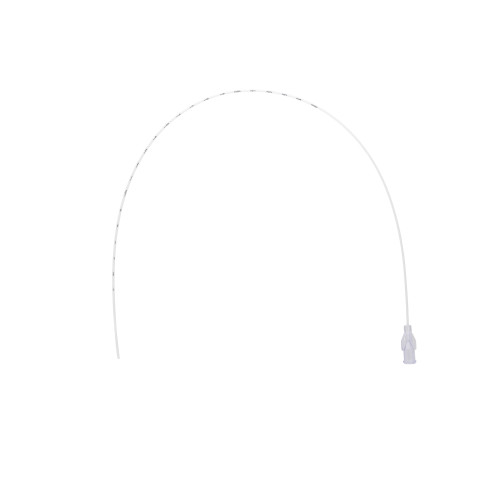

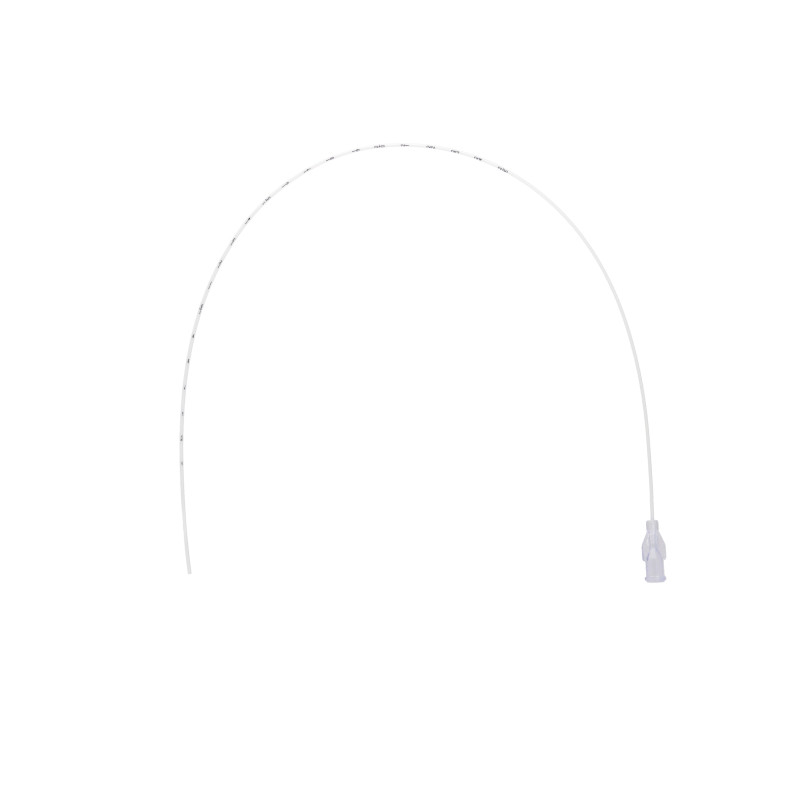

Catheter in radiopaque and transparent PUR, can be used for venous or arterial access. Supplied with a 3-way stopcock vyclic color and… Přečtěte si více
Indikace
This catheter can be introduced either in the umbilical vein or in the umbilical artery.
An umbilical venous catheter is mainly used for neonatal emergencies for a short period of time (a few days). It allows parenteral nutrition, blood or blood products transfusion, exchange-transfusion, drugs administrations, central venous pressure measurement etc.
Popis

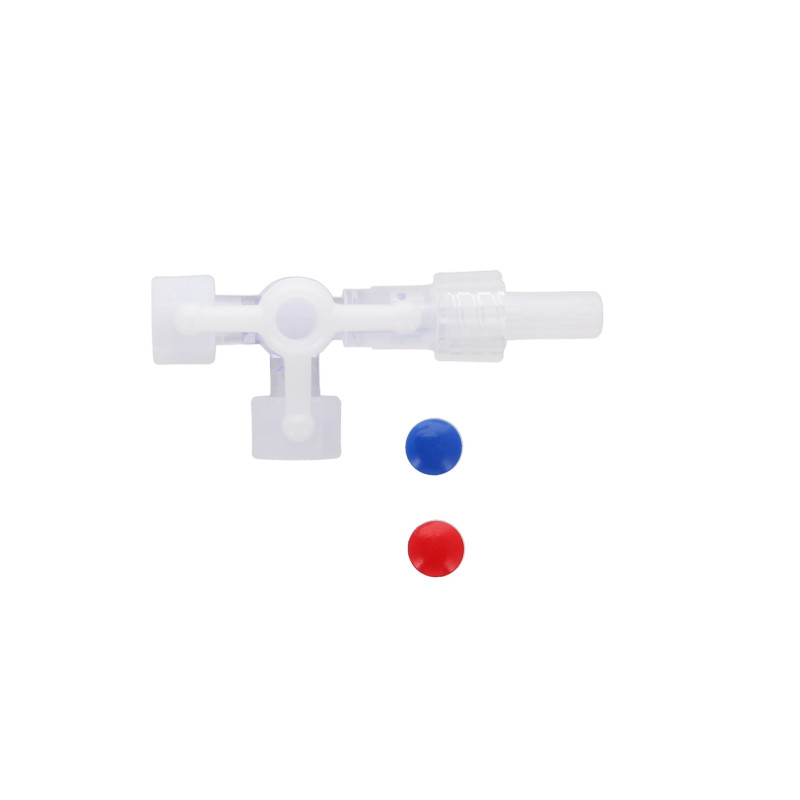

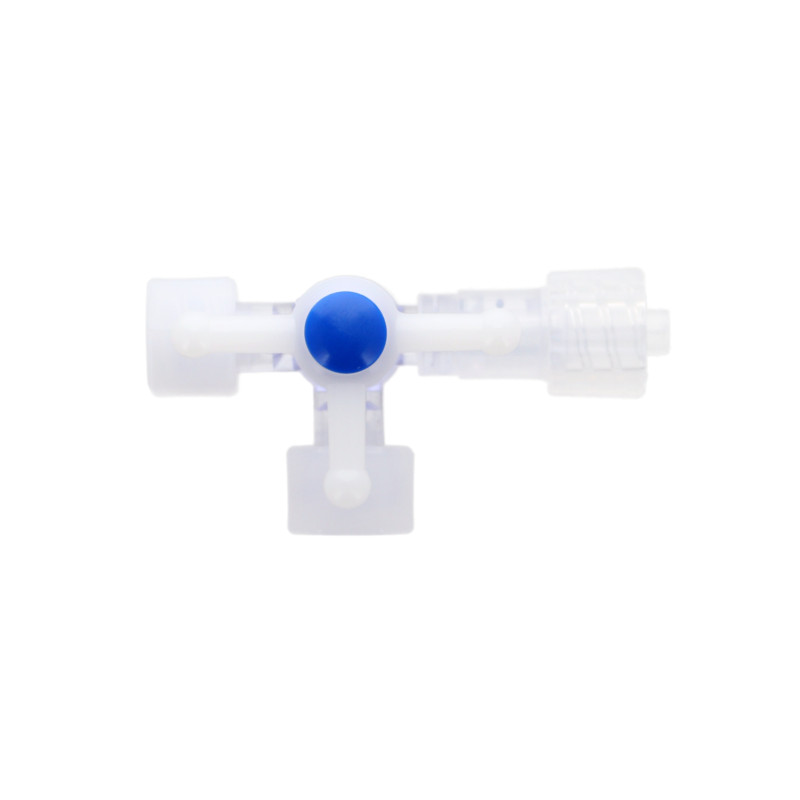

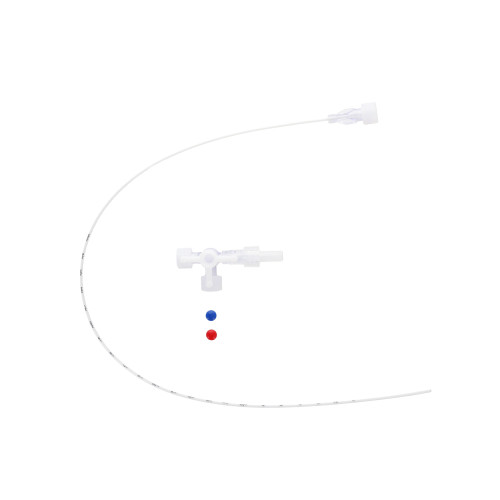

Catheter in radiopaque and transparent PUR, can be used for venous or arterial access.Supplied with a 3-way stopcock vyclic color and identification plugs (red for arterial use, blue for venous use).

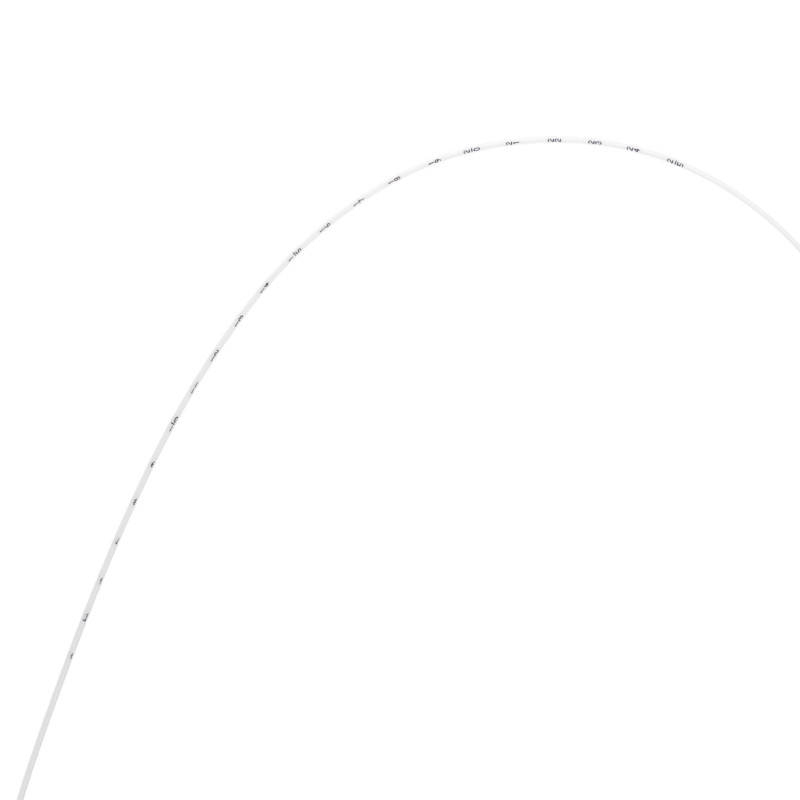

Actual distance from the distal tip is printed numerically from 4 to 25 cm.
Sizes available:
- 2.5Fr: Length 30 cm
- 3.5Fr, 4Fr, 5Fr and 8Fr: Length 40 cm
Polyurethane has good haemocompatibility (reduced risk of thrombosis).
No plasticizer release.
Reference a funkce
| Catheter | Balení | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Int. Ø mm | Ext. Ø mm | Ø Fr | Length cm | Flow rate ml/min | Prim. vol. ml | Jednotky/balení | Jednotky/karton |
| 1270.02 | 0.5 | 0.8 | 2.5 | 30 | 3 | 0.12 | 8 | 120 | |
| 1270.03 | 0.8 | 1.2 | 3.5 | 40 | 10 | 0.27 | 8 | 120 | |
| 1270.04 | 0.8 | 1.5 | 4 | 40 | 10 | 0.29 | 20 | 180 | |
| 1270.05 | 1.0 | 1.7 | 5 | 40 | 23 | 0.40 | 20 | 180 | |
| 1270.08 | 1.5 | 2.5 | 8 | 40 | 100 | 0.81 | 20 | 180 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
Brochure Umbilical catheter
-
Návod k použití
