Midline Modified Seldinger
Lifecath Midline with MST kit
Popis
Lifecath Midline is a single or double lumen venous catheter made of biostable polyurethane inserted in a peripheral vein with the Micro-Seldinger… Přečtěte si více
Indikace
Polyurethane Midline venous catheter, inserted in a peripheral vein for infusions of drugs and solutions not aggressive for peripheral vessels.
Popis

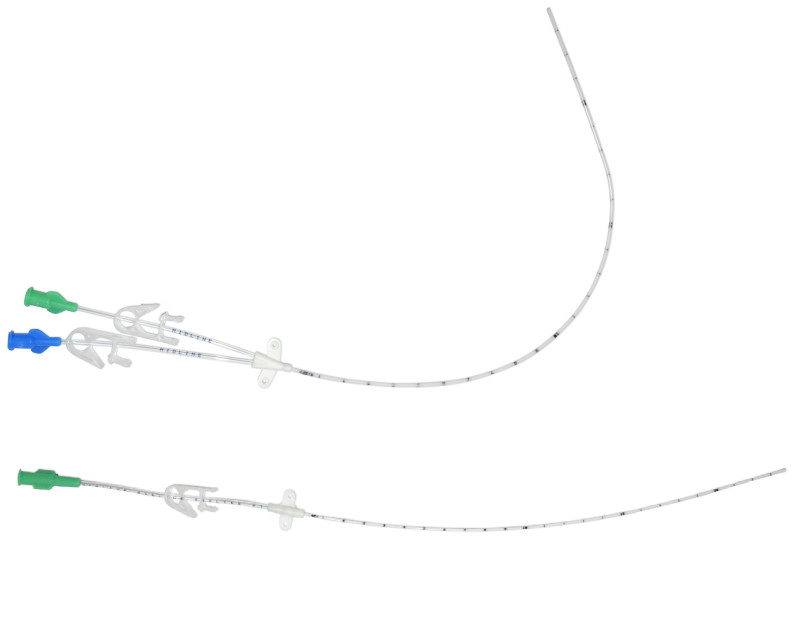

Lifecath Midline is a single or double lumen venous catheter made of biostable polyurethane inserted in a peripheral vein with the Micro-Seldinger technics.Lifecath Midline is available in 20 or 25 cm length.
Lifecath Midline is supplied in a rigid blister pack containing:
- 1 Lifecath Midline catheter
- 1 stylet
- 1 "T" proximal connector
- 1 or 2 Bionector
- 1 measuring tape
- 1 Griplok, device for catheter fixation
- 1 label marked "Midline"
- 2 traceability labels
- 1 Micro-Seldinger introducer
The Micro-Seldinger introducer includes:
- 1 echogenic safety puncture needle 21G
- 1 10ml syringe

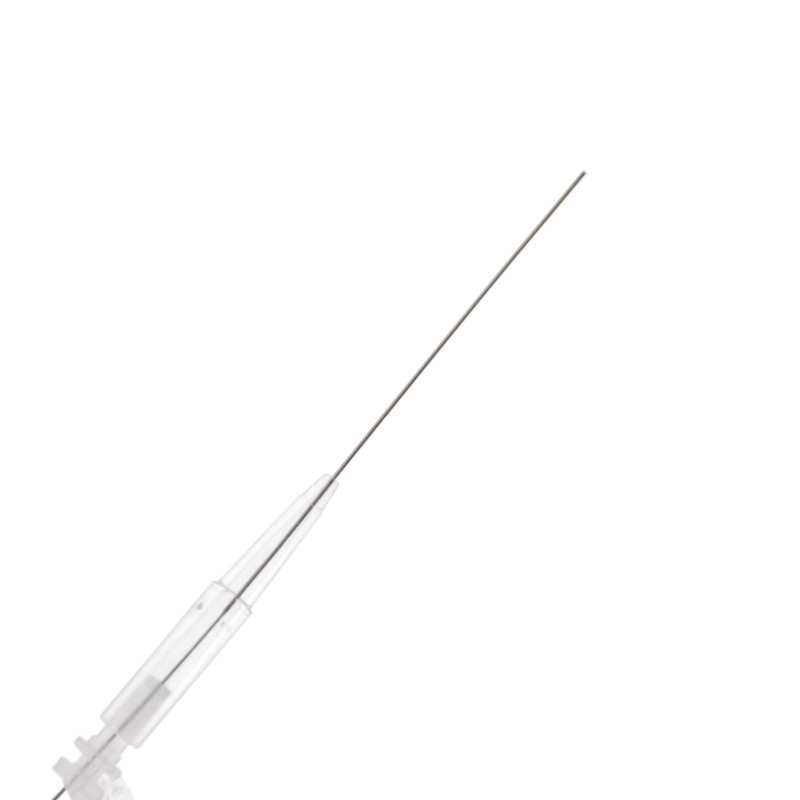

- 1 straight Nitinol guidewire
- 1 guide advancer
- 1 7cm peelaway Desilet
- 1 scalpel
Lifecath Midline can also be supplied with a peelable cannula introducer.
Reference a funkce
| Catheter | Puncture needle | Peel-apart Desilet | Guidewire | Balení | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Ø Fr | Ext. Ø mm | Length cm | Flow rate ml/min | Prim. vol. ml | Lumen | Ext. Ø G | Length mm | Ø Fr | Sheath length mm | Ø mm | Length mm | Jednotky/balení | Jednotky/karton |
| 1296.113 | 3 | 1.0 | 25 | 3.5 | 0.45 | 1 | 21 | 70 | 3 | 70 | 0.46 | 500 | 10 | 10 | |
| 1296.114 | 4 | 1.35 | 25 | 19.5 | 0.48 | 1 | 21 | 70 | 4 | 70 | 0.46 | 500 | 10 | 10 | |
| 1296.345 | 4.5 | 1.5 | 25 | 15.0 (x2) | 0.35 (x2) | 2 | 21 | 70 | 4.5 | 70 | 0.46 | 500 | 10 | 10 | |
| 1296.433 | 3 | 1.0 | 20 | 4.1 | 0.43 | 1 | 21 | 70 | 3 | 70 | 0.46 | 500 | 10 | 10 | |
| 1296.442 | 4 | 1.35 | 20 | 22 | 0.44 | 1 | 21 | 70 | 4 | 70 | 0.46 | 500 | 10 | 10 | |
| 1296.443 | 4 | 1.35 | 20 | 22 | 0.44 | 1 | 21 | 70 | 4 | 70 | 0.46 | 500 | 10 | 10 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
Brochure Lifecath Midline
-
Návod k použití
