Closed Safety Connectors CSSA

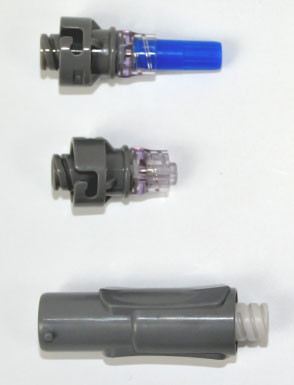

Qimoprime + Qimomale + Qimofemale
Popis
Qimo set – Securing and Priming the Infusion Line Set for securing the filling site of the diffuser with Qimo ♀ and the distal end of its… Přečtěte si více
Indikace
Set for securing the filling site of the diffuser with Qimofemale and the distal end of its tubing with Qimomale, as well as for priming it using Qimoprime.
Popis
Qimo set – Securing and Priming the Infusion LineSet for securing the filling site of the diffuser with Qimo ♀ and the distal end of its tubing with Qimo♂, as well as for priming it using Qimoprime.
Qimoprime is a priming device designed to connected to any product equipped with a Qimo♂ connector.
Technical features
- Priming volume: 0.08ml
- Filter: 1.2µ
Qimo♂ is a closed-system safety connector featuring a disinfectable silicone membrane and needle-free allowing for the safe preparation and administration of high-risk medicines.
Technical features
- Priming volume: 0.35ml
- Up to 10 connections

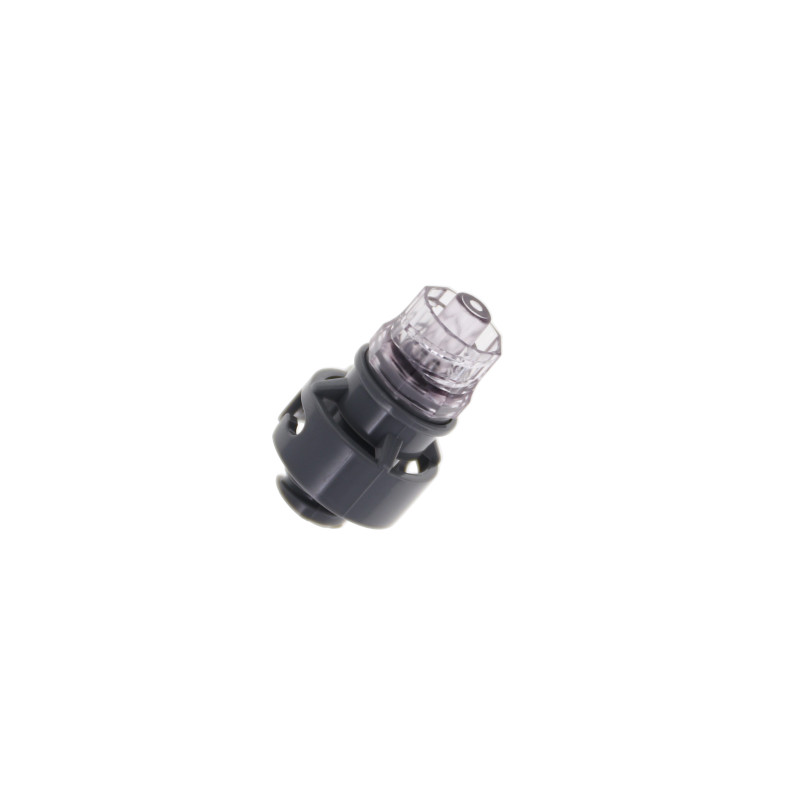

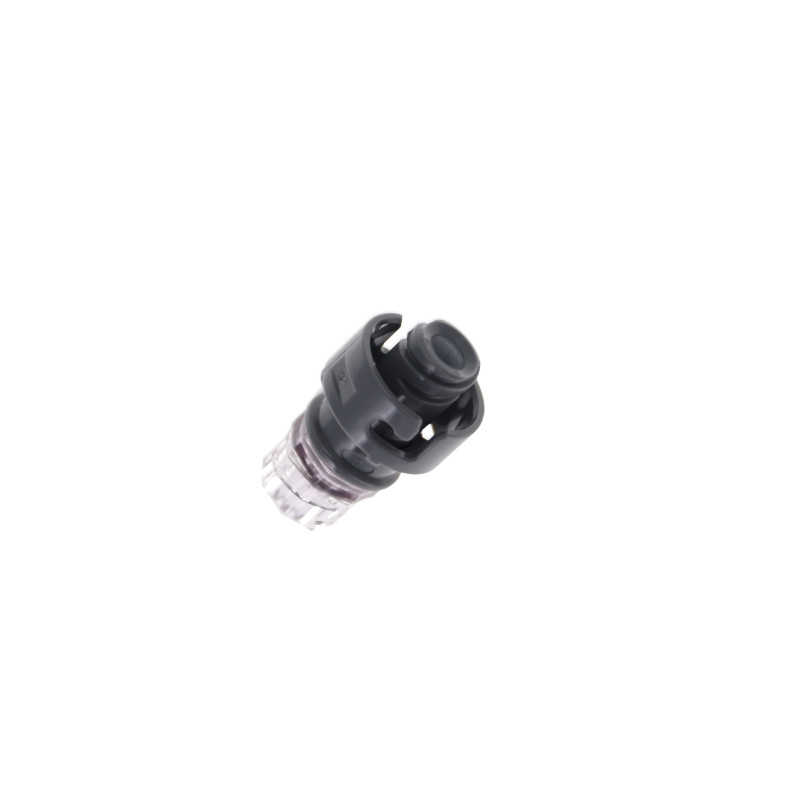

Qimo ♀ is a safety connector, a disinfectable, needle-free, multi-purpose catheterisation accessory in a closed system.
Technical features
- Priming volume: 0.03 ml
- Replacement frequency: < 360 connections or 7 days
Reference a funkce
| Balení | |||
|---|---|---|---|
| Favourites | Kód | Jednotky/balení | Jednotky/karton |
| 7210.04 | 50 | 600 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
Brochure Disposable Infusion Pump
-
WP3 Chemical resistance of the connection - 12/2015
-
WP5 Resistance to Microbial Ingress - 12/2018
-
Návod k použití
-
WP11 NIOSH Testing in Administration - 10/2019
-
Catalogue Qimono
-
Brochure Qimono
-
WP1 Tightness of QimoMale after freezing - 07/2018
-
WP2 Qimo♀ luer compatibility - 12/2015
