Closed Safety Connectors CSSA
Qimofemale
Popis
Qimo♀ – Closed-System Safety Connector Qimo♀ is a disinfectable safety connector featuring a pre-slit polyisoprene membrane and… Přečtěte si více
Indikace
Safety connector, a disinfectable, needle-free, multi-purpose catheterisation accessory in a closed system for sampling, injection and infusion.
Popis

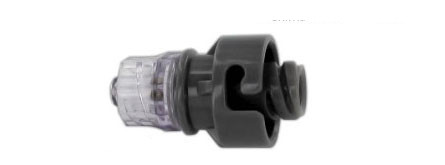

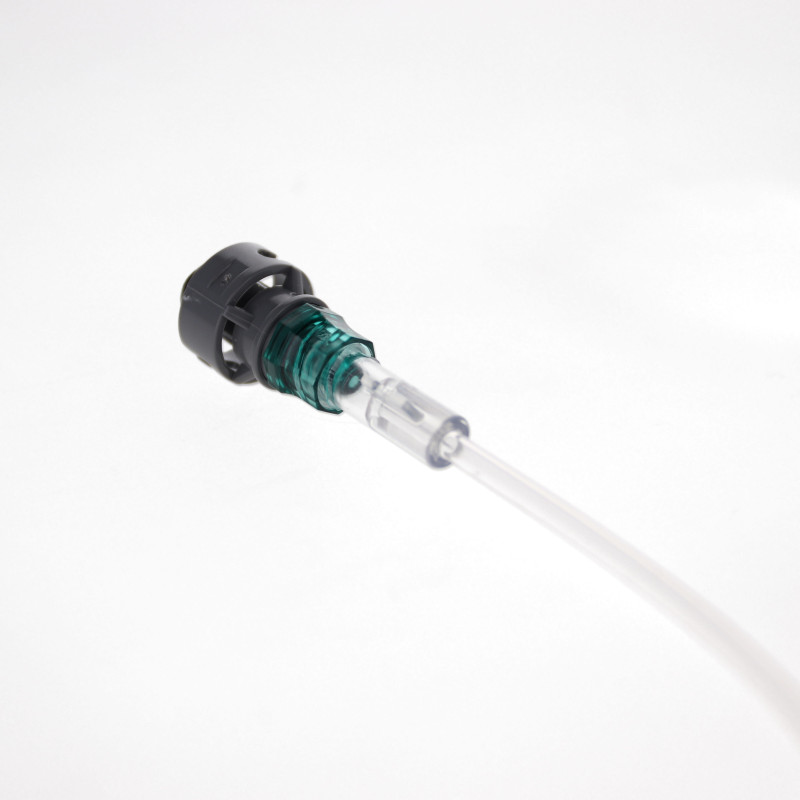

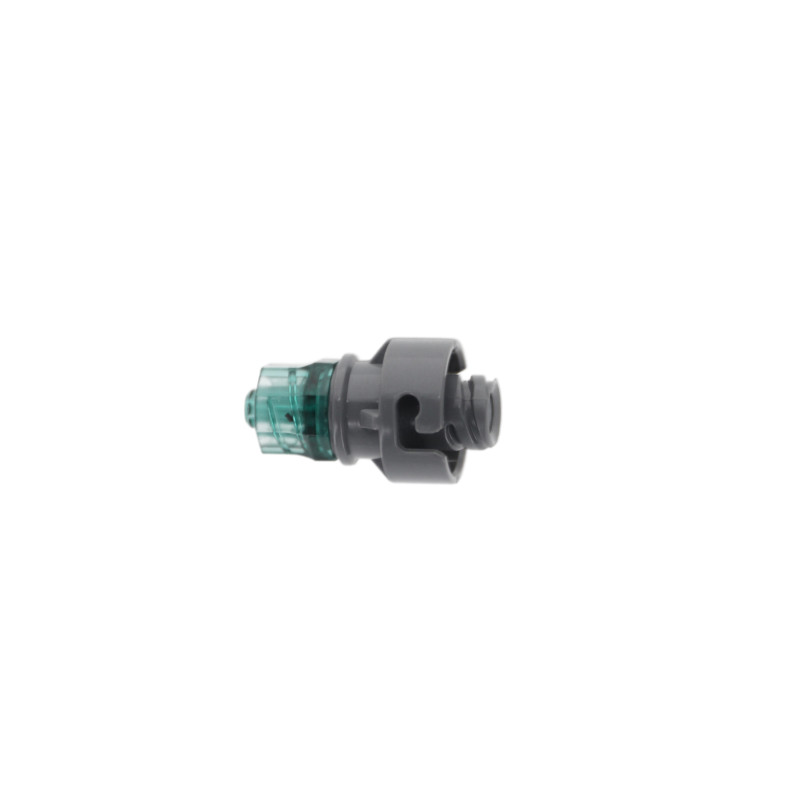

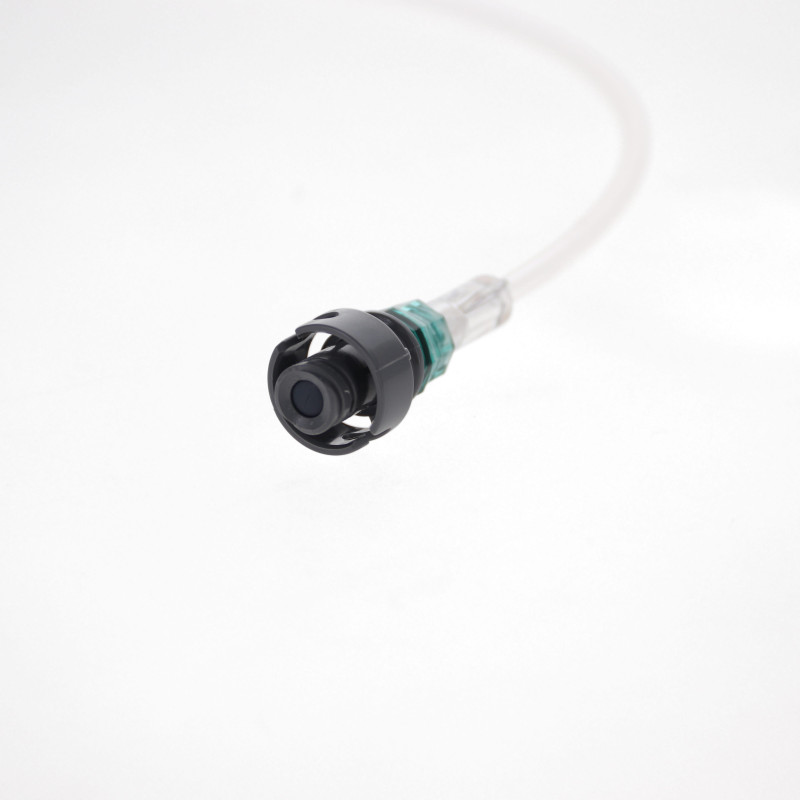

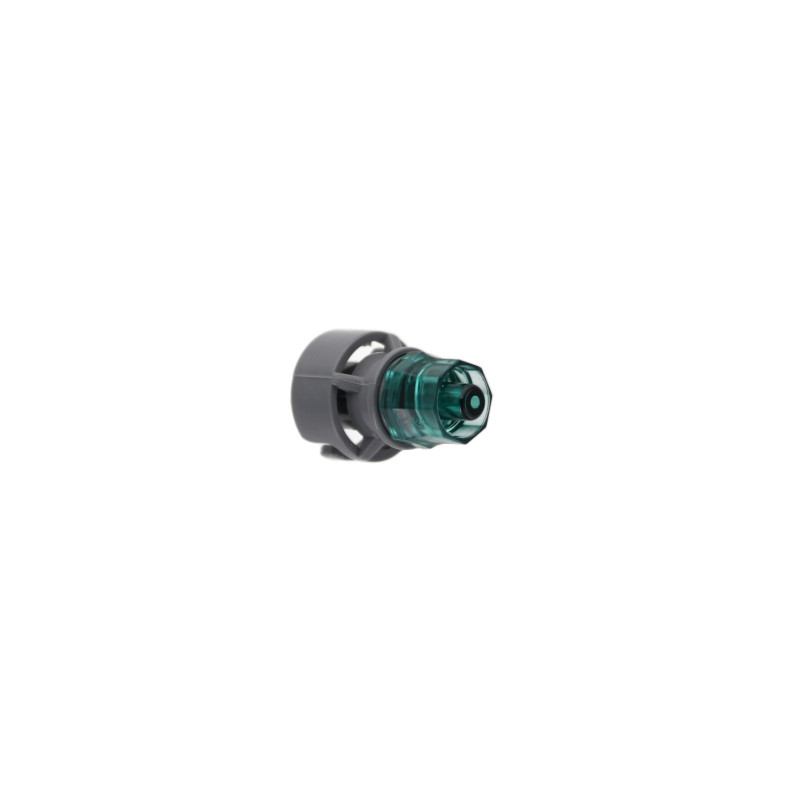

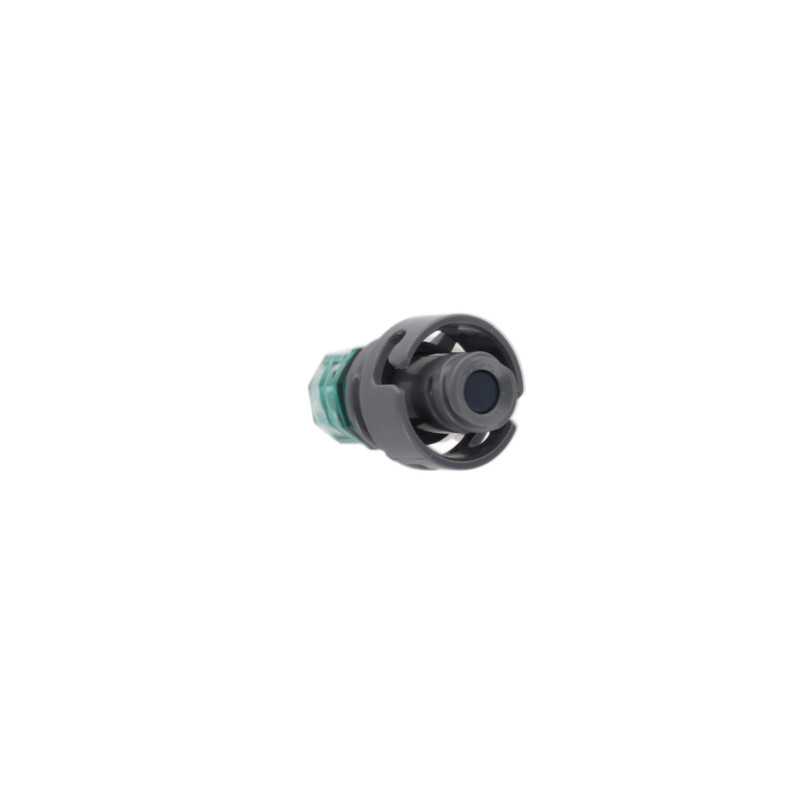

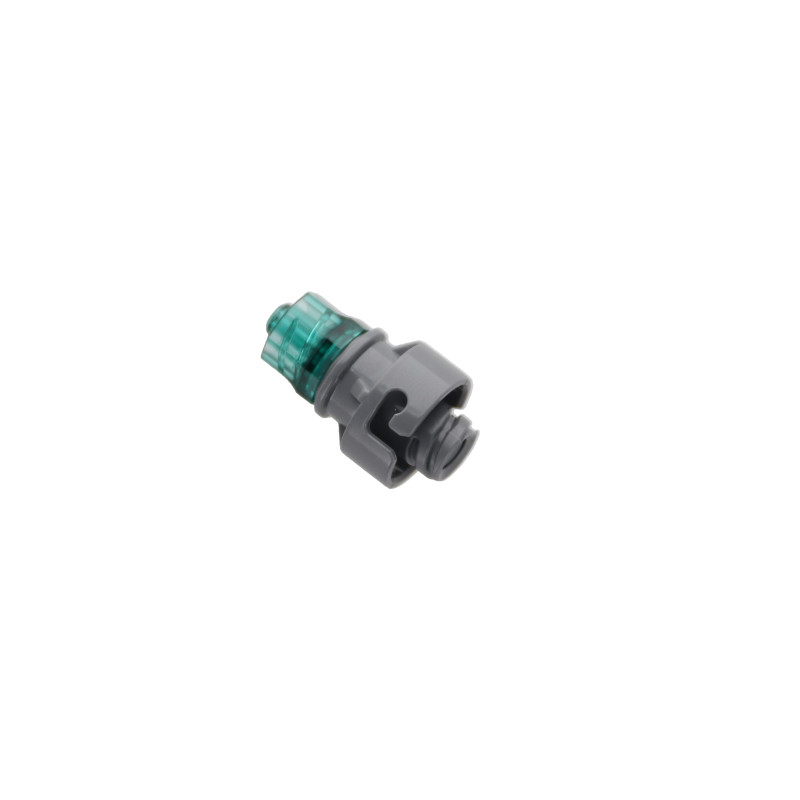

Qimo♀ – Closed-System Safety ConnectorQimo♀ is a disinfectable safety connector featuring a pre-slit polyisoprene membrane and needle-free.
Distal end: a male Luer-lock connection compatible with any device equipped with a female Luer-lock port.
Proximal end: a female Luer-lock port kept closed by an internal membrane.

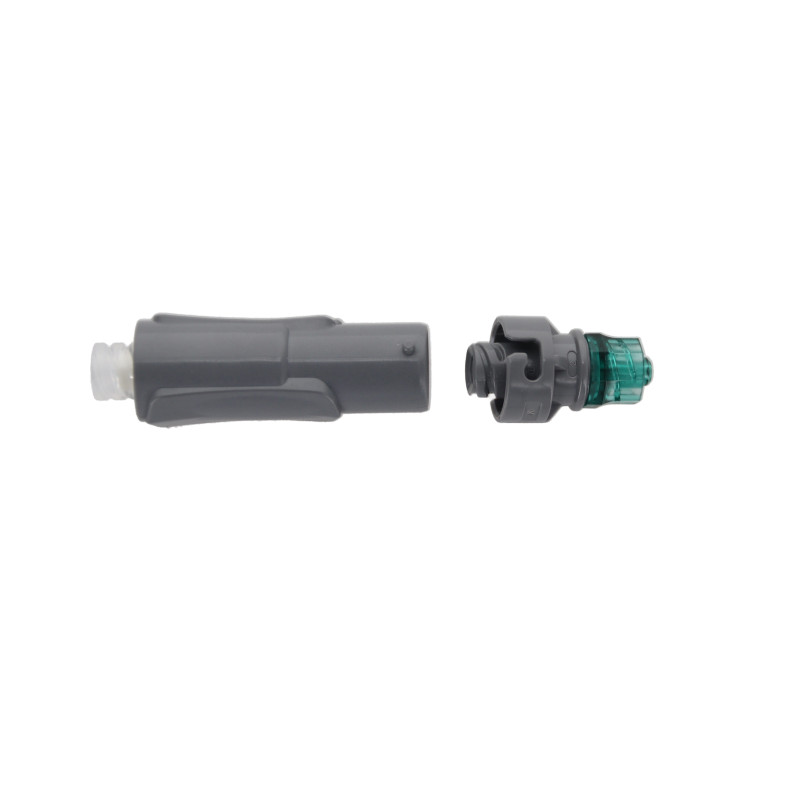

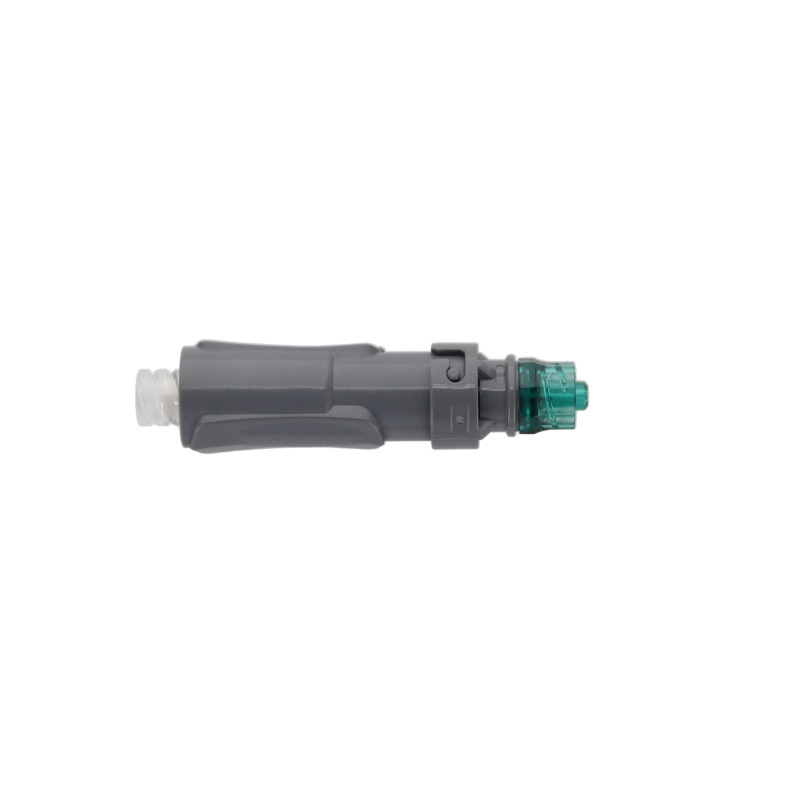

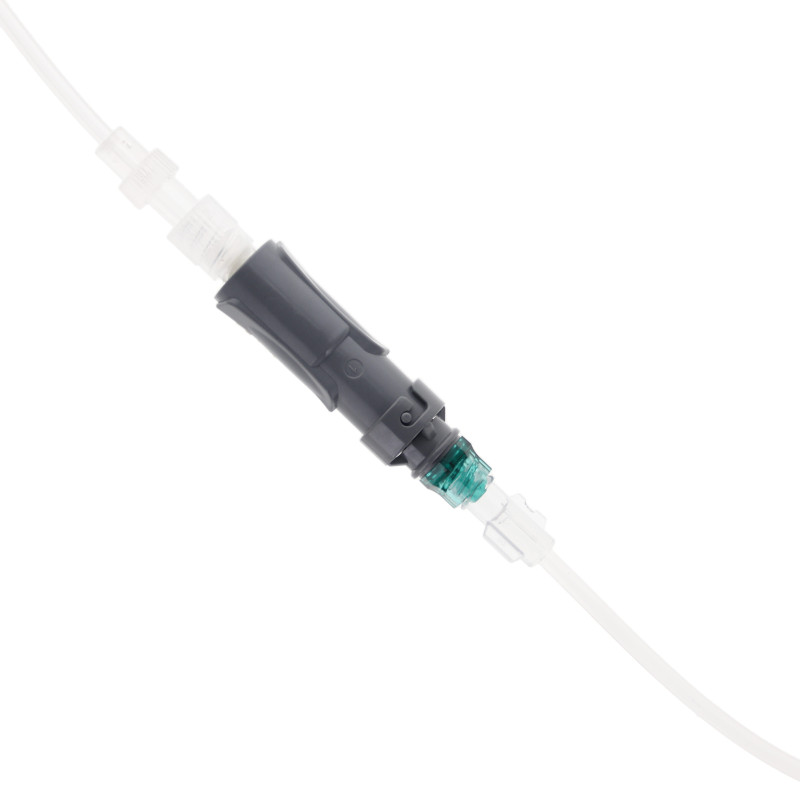

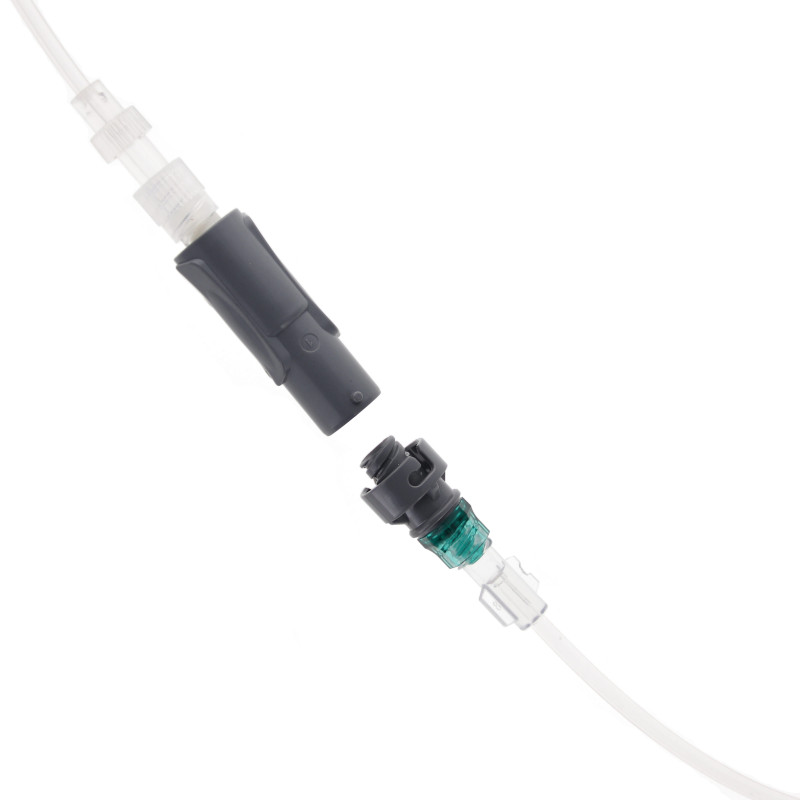

Qimo♀ can be connected either to a Qimo♂ (via its Luer "bayonet" fitting) or to a male Luer-lock or Luer-Slip connector.
When connected, the internal membrane opens through a spring mechanism, creating a channel. Upon disconnection, the membrane automatically closes to maintain the tightness of the device.
Technical features
- Closed system with automatic closure
- Pre-slit polyisoprene membrane
- Lipid-resistance
- Priming volume: 0.03ml
- Replacement frequency: < 360 connections or 7 days
Reference a funkce
| Balení | |||
|---|---|---|---|
| Favourites | Kód | Jednotky/balení | Jednotky/karton |
| 7210.02 | 50 | 1200 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
Brochure Disposable Infusion Pump
-
Brochure Qimono Closed Safety System EN
-
WP3 Chemical resistance of the connection - 12/2015
-
Návod k použití
-
WP5 Resistance to Microbial Ingress - 12/2018
-
WP11 NIOSH Testing in Administration - 10/2019
-
Catalogue Qimono
-
Brochure Qimono
-
WP2 Qimo♀ luer compatibility - 12/2015
