Inflation devices
Flamingo
Popis
A COMPACT AND ERGONOMIC INFLATION DEVICE PRESSURE GAUGE 30 atm / 30cm³: one product for all procedures 90° rotating… Přečtěte si více
Indikace
Flamingo inflation device is intended for use during cardiovascular procedures to create, maintain and monitor pressure in the balloon catheter.
Flamingo Inflation Device is intended for use in adults only.
Popis
A COMPACT AND ERGONOMIC INFLATION DEVICEPRESSURE GAUGE
- 30 atm / 30cm³: one product for all procedures
- 90° rotating manometer: “custom” handling
- Colored pressure scale: easy reading
BODY AND BUTTON
- Unique mechanism for rapid pressure increase: efficiency - fast procedures
- 20 cc / 20 cm³ graduated syringe: compact system
- Grip design: good handling
- Clear material: easy air bubbles detection and removal
HANDLE
- Ergonomic design: easy handling
- Progressive resistance while inflating: pressure feedback
Some references are delivered with some accessories:

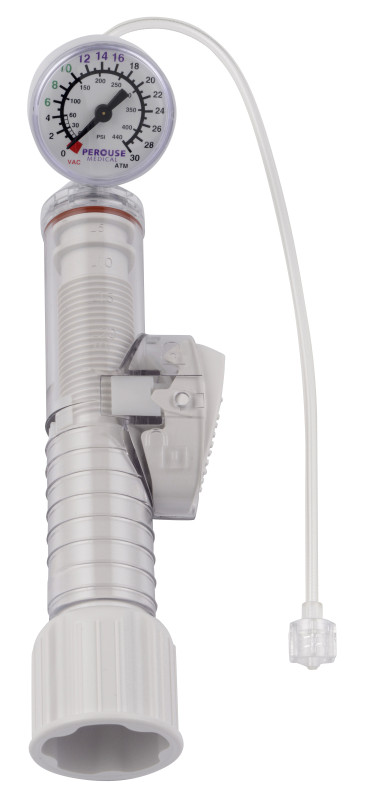

- 0218NA (sterile): included a 3-way stopcock.
- 0218NK (sterile): included a 3-way stopcock and a phosphorescent pressure gauge.
- 0218NP (sterile): included a 3-way stopcock, a push-pull Y connector (7Fr), a twisting torque device and a guidewire introducer.
- 0218PM (sterile): included a Myshell Lite (7Fr) with stopcock, a twisting torque device and a guidewire introducer.
- 0218QN (sterile): included a Myshell Lite (9Fr) with stopcock, an Alligatork torque device and a guidewire introducer.

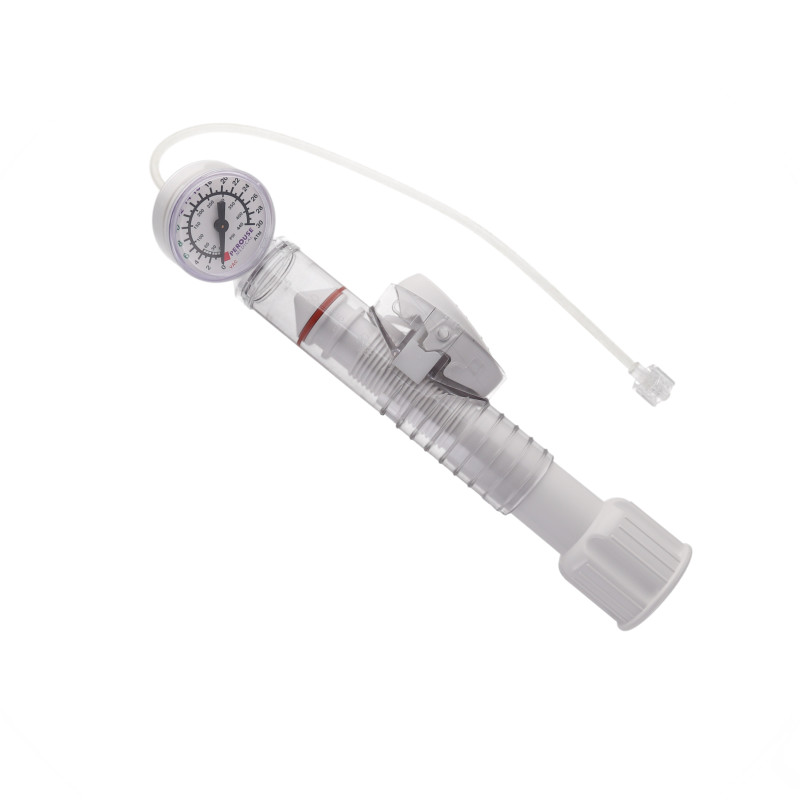

- 0218KT (sterile): included a push-pull Y connector with stopcock (7Fr), a twisting torque device and a guidewire introducer.
- 0218KR (sterile): included a 3-way stopcock, a push-pull Y connector with stopcock (7Fr), a twisting torque device and a guidewire introducer.
- 0218NF (non-sterile): included a 3-way stopcock.
Reference a funkce
| Accessories | Balení | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | 3-way stopcock | Guidewire introducer | Torque device | Push-pull Y connector with stopcock (7F) | Myshell Lite (7F) with stopcock | Alligatork torque device | Myshell Lite (9F) with stopcock | Jednotky/balení | Jednotky/karton |
| 0218KR | Yes | Yes | Yes | Yes | - | - | - | 12 | 12 | |
| 0218KT | - | Yes | Yes | Yes | - | - | - | 12 | 12 | |
| 0218NA | Yes | - | - | - | - | - | - | 12 | 12 | |
| 0218ND | - | - | - | - | - | - | - | 12 | 12 | |
| 0218NK | Yes | - | - | - | - | - | - | 12 | 12 | |
| 0218PM | - | Yes | Yes | - | Yes | - | - | 12 | 12 | |
| 0218QN | - | Yes | - | - | - | Yes | Yes | 12 | 12 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
Dokumentace
-
Brochure Flamingo
-
Catalogue Cardiovascular sterile - 01/2023
-
Návod k použití
