Connection lines
Algaflex
Popis
FEATURES & BENEFITS: Designed for 1200 PSI (83 BARS / 8274 KPA) Lengths: from 75 cm to 180 cm Polyurethane (PU) Rotating … Přečtěte si více
Indikace
Algaflex connectors are designed to connect two devices in order to convey a liquid such as contrast or serum under a specific pressure. Simply connect the female tip to the male tip of a device and the male end to the female end of another device.
Algaflex connectors are intended to be connected to an angiography syringe on one side and to a catheter on the other side to allow the injection of contrast media to the patient.
These devices are used in interventional radiology during angiography and angioplasty procedures.
Algaflex connectors are intended to be used for adults only.
Popis

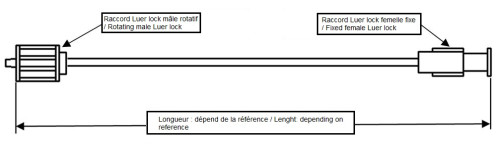

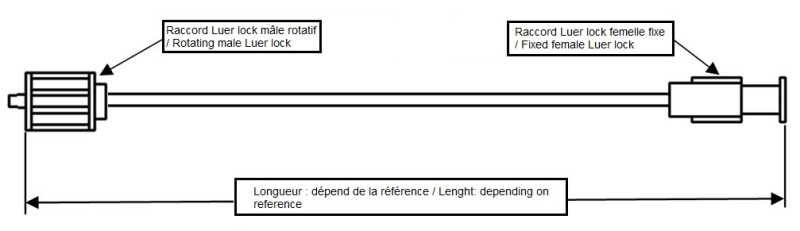

FEATURES & BENEFITS:- Designed for 1200 PSI (83 BARS / 8274 KPA)
- Lengths: from 75 cm to 180 cm
- Polyurethane (PU)
- Rotating
Reference a funkce
| Connector | Balení | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Kód | Inner diameter mm | Length cm | Male Luer-lock | Female Luer-lock | Jednotky/balení | Jednotky/karton |
| 0163NB | 1.8 | 75 | Rotating | Fixed | 30 | 150 | |
| 0163TP | 1.8 | 150 | Rotating | Fixed | 30 | 150 | |
| 0209NG | 1.7 | 75 | Rotating | Fixed | 30 | 150 | |
| 0209NL | 1.7 | 150 | Rotating | Fixed | 30 | 150 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
Dokumentace
-
Brochure Algaflex
-
Catalogue Cardiovascular sterile - 01/2023
-
Návod k použití
