Tip location with ECG
Combcard
Popis
The combcard is a red ECG (electrocardiogram) cable with a pushbutton and a crocodile clip. The push button is connected to the ECG monitor. The… Přečtěte si více
Indikace
The combcard ECG cable is used for intracavitary electrocardiagram guidance during a CVC (central venous catheter) insertion.
Popis

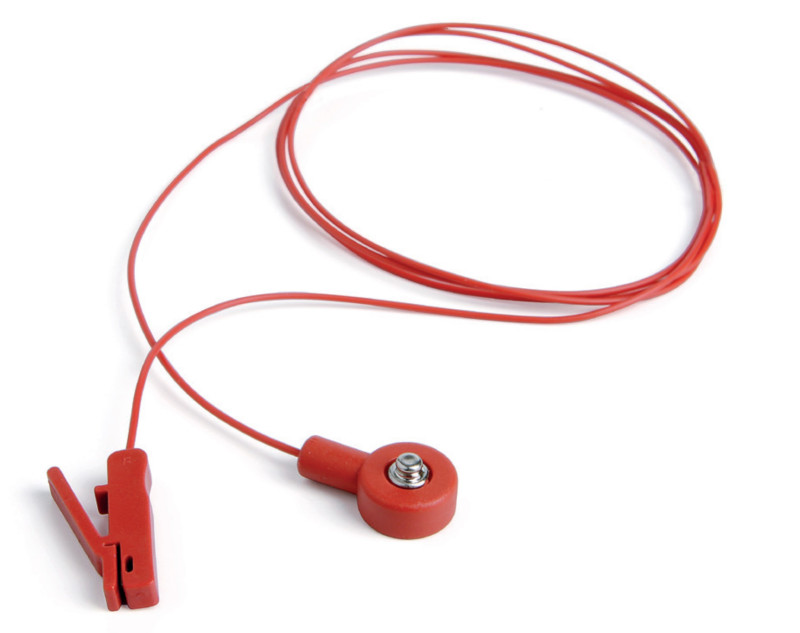

The combcard is a red ECG (electrocardiogram) cable with a pushbutton and a crocodile clip.The push button is connected to the ECG monitor. The crocodile clip is connected to the guidewire whose « J » tip (and only the J tip) protrudes the distal end of the catheter. When the tip of the central venous catheter reaches the superior vena cava and advances towards the right atrium, the P-wave gains in amplitude. When the P-wave is at half of the QRS wave or at its highest amplitude, without being biphasic (the P-wave must show no negative feature which would indicate that the catheter is within the right atrium and must be slightly withdrawn), the catheter is in the correct position.
Reference a funkce
| Lead | Balení | |||
|---|---|---|---|---|
| Favourites | Kód | Length cm | Jednotky/balení | Jednotky/karton |
| 9168.202 | 110 | 10 | 40 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
