Triple-layer extension lines
Lectroflex
Popis
Triple-layer extension tube (PVC/EVA/PE) for IV catheters with 1 male Luer-lock end and 1 female Luer-lock end.Diameter: 2,5 x 4,0 mm - Pressure… Přečtěte si více
Indikace
Add-on device for IV catheters: extension tube.
Popis

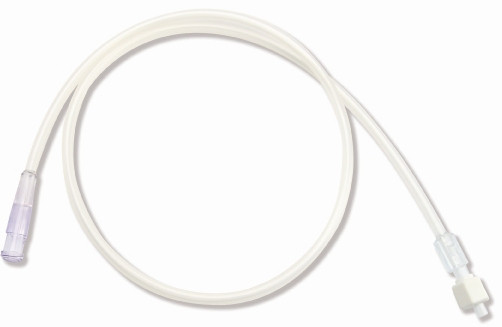

Triple-layer extension tube (PVC/EVA/PE) for IV catheters with 1 male Luer-lock end and 1 female Luer-lock end.Diameter: 2,5 x 4,0 mm - Pressure tested at 10 kg/cm2 (145 PSI)Available in 7 lengths : 13.5 cm (code 220.010), 25 cm (code 220.020), 50 cm (code 220.050), 70 cm (code 220.070), 100 cm (code 220.100), 150 cm (code 220.150) and 200 cm (code 220.200).
Reference a funkce
| Extension tube | Balení | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Kód | Int. Ø mm | Ext. Ø mm | Priming volume ml | Length cm | Jednotky/balení | Jednotky/karton |
| 220.010 | 2.5 | 4.0 | 1.0 | 13.5 | 25 | 300 | |
| 220.020 | 2.5 | 4.0 | 1.60 | 25 | 25 | 300 | |
| 220.050 | 2.5 | 4.0 | 2.80 | 50 | 25 | 300 | |
| 220.070 | 2.5 | 4.0 | 3.80 | 70 | 25 | 150 | |
| 220.100 | 2.5 | 4.0 | 5.2 | 100 | 25 | 150 | |
| 220.150 | 2.5 | 4.0 | 7.7 | 150 | 25 | 150 | |
| 220.200 | 2.5 | 4.0 | 10 | 200 | 25 | 150 | |
| 221.050 | 2.5 | 4.0 | 2.80 | 50 | 25 | 300 | |
| 221.100 | 2.5 | 4.0 | 5.20 | 100 | 25 | 150 | |
| 221.150 | 2.5 | 4.0 | 7.70 | 150 | 25 | 150 | |
| 221.200 | 2.5 | 4.0 | 10.00 | 200 | 25 | 150 | |
| 222.020 | 1.5 | 2.5 | 0.59 | 25 | 25 | 300 | |
| 222.050 | 1.5 | 2.5 | 1.0 | 50 | 25 | 300 | |
| 222.100 | 1.5 | 2.5 | 1.9 | 100 | 25 | 150 | |
| 222.150 | 1.5 | 2.5 | 2.8 | 150 | 25 | 150 | |
| 222.200 | 1.5 | 2.5 | 3.7 | 200 | 25 | 150 | |
| 70222.021 | 1.0 | 2.5 | 0.5 | 25 | 25 | 300 | |
| 70222.051 | 1.0 | 2.5 | 0.6 | 50 | 25 | 300 | |
| 70222.101 | 1.0 | 2.5 | 1.0 | 100 | 25 | 150 | |
| 70222.151 | 1.0 | 2.5 | 1.3 | 150 | 25 | 150 | |
| 70222.201 | 1.0 | 2.5 | 1.8 | 200 | 25 | 150 | |
| 70222.301 | 1.0 | 2.5 | 2.6 | 300 | 25 | 150 | |
| 70222.701 | 1.0 | 2.5 | 5.8 | 700 | 25 | 150 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
