Single/multi-lumen extension lines with uni/bidirectional valves
Octopus with Autoflush (1-3 lumen)
Popis
Octopus is a polyurethane multi-lumen extension tube for I.V. catheters, transparent and with low priming volume. To identify the different infusion… Přečtěte si více
Indikace
Multi-lumen IV extension tubes with hubs fitted with Autoflush and, in some cases, with non-return valves.
Popis

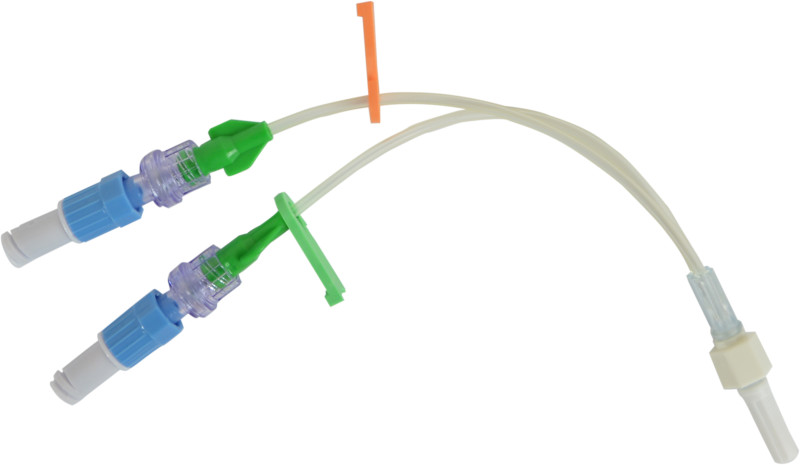

Octopus is a polyurethane multi-lumen extension tube for I.V. catheters, transparent and with low priming volume.To identify the different infusion lines, each tube has a clamp of different colour.
Octopus allows, in some cases, to avoid the use of stopcocks or ramps of stopcocks.
Autoflush connected to the proximal hubs of the Octopus is a multi-purpose, closed, disinfectable needleless access device for blood sampling, intermittent injections or continuous infusion of fluids or drugs.
When a syringe or any device featuring a male Luer or male Luer-lock end is disconnected from Autoflush, a positive bolus of 0.03 ml is injected which maintains catheter patency.
The non-return valves prevent any backtracking of fluids or drugs when different infusions are running simultaneously.
Reference a funkce
| Extension tube | Balení | |||||||
|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Length cm | Int. Ø mm | Ext. Ø mm | Priming volume ( with non-return valve) ml | Priming volume (without non-return valve) ml | Jednotky/balení | Jednotky/karton |
| 5841.207 | 10 (x2) | 1.5 (x2) | 2.5 (x2) | 0.62 (x2) | - | 10 | 120 | |
| 5841.208 | 10 (x2) | 1.5 (x2) | 2.5 (x2) | - | 0.44 (x2) | 10 | 90 | |
| 5841.307 | 10 (x3) | 1.5 (x3) | 2.5 (x3) | 0.62 (x3) | - | 10 | 120 | |
| 5841.308 | 10 (x3) | 1.5 (x3) | 2.5 (x3) | - | 0.45 (x3) | 10 | 90 | |
| 5842.209 | 10 (x2) | 1.5 (x2) | 2.5 (x2) | 0.55 (x1) | 0.44 (x1) | 10 | 120 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
