Needle-free connectors

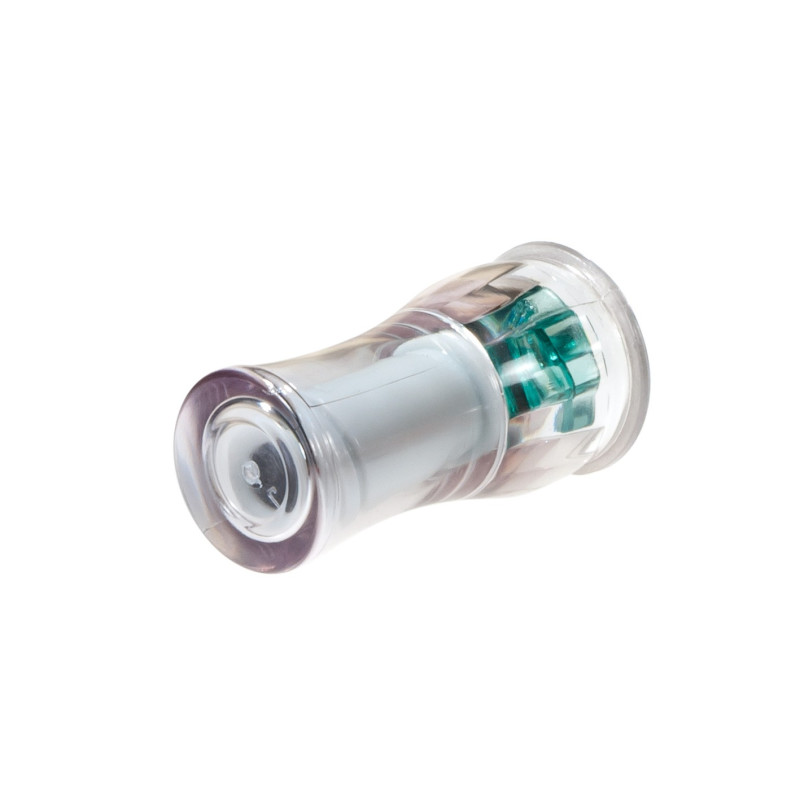

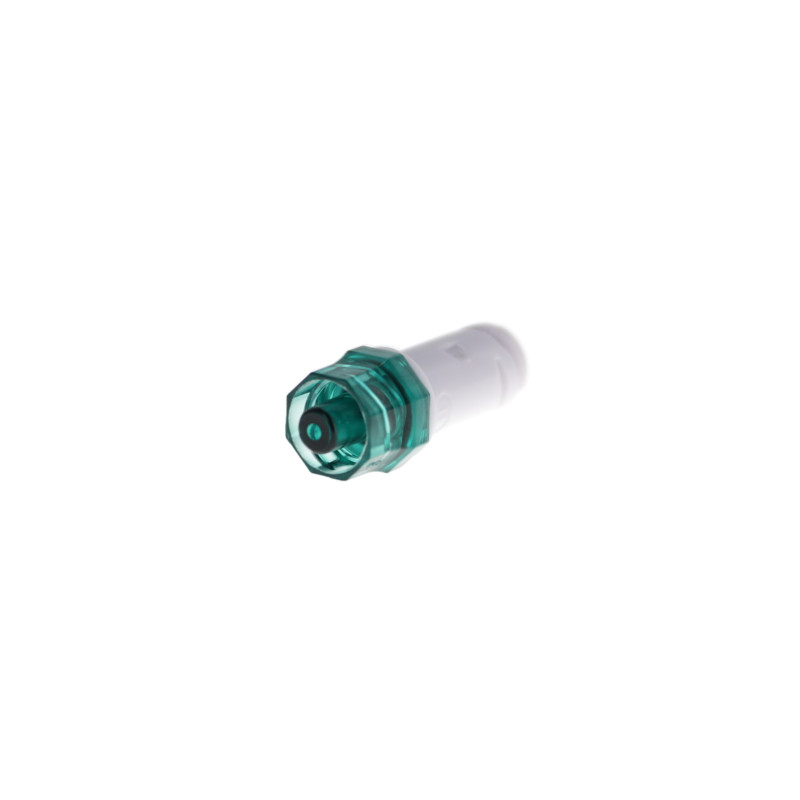

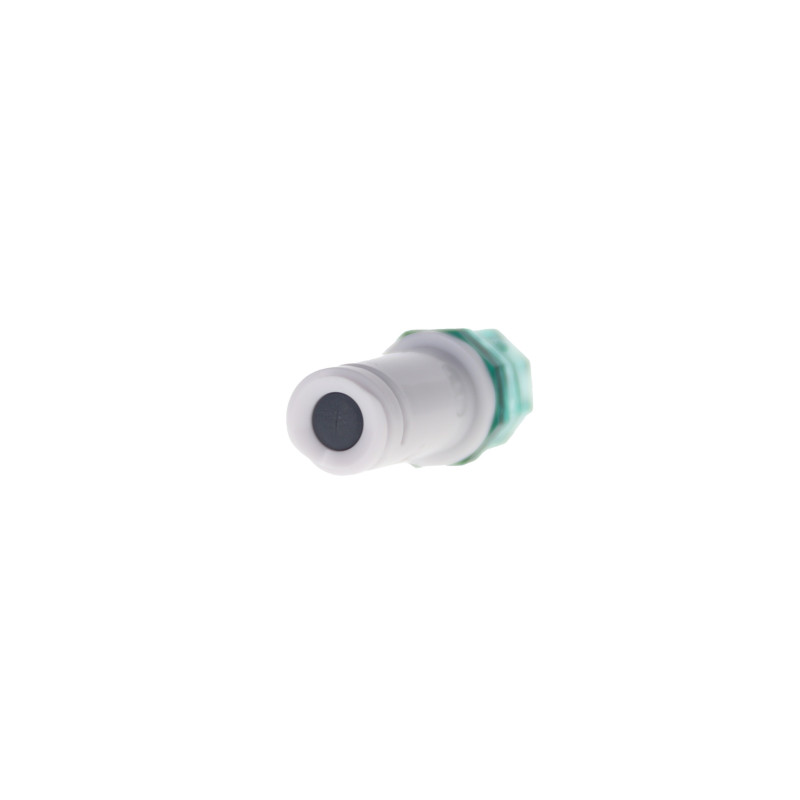

Bionector
Popis
Bionector is a multi-purpose, closed, needle-free connection device. When Bionector is in place, you can infuse, inject sample and change the I.V… Přečtěte si více
Indikace
Needle-free connector for I.V infusions. Bionector is connected directly to IV catheters or to IV extension tubes, stopcocks, ramps of stococks etc. It allows blood samplings, intermittent injections or continuous infusions of fluids or drugs maintaining constantly a closed IV system.
Popis
Bionector is a multi-purpose, closed, needle-free connection device.- Bionector preserves constantly a closed system
- 7 days or 360 connections
- Straight fluid pathway
- Neutral displacement of fluid
- Minimal dead space
- Can be used with power injectors (CT-scan). Pressure resistance: 350 psi
- MRI conditional
Reference a funkce
| Bionector | Balení | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Flow rate ml/min | Priming volume ml | Number of accesses | Max. duration of use | Length mm | Diameter mm | Weight g | Internal Diameter mm | Jednotky/balení | Jednotky/karton |
| 896.01 | 105 | 0.03 | 360 | 7 days | 25.7 | 10 | 1.243 | 0.90 +/- 0.02 | 50 | 1600 | |
| 896.02 | 105 | 0.03 | 360 | 7 days | 25.7 | 10 | 1.243 | 0.90 +/- 0.02 | 25 | 1200 | |
| 896.03 | 105 | 0.03 | 360 | 7 days | 25.7 | 10 | 1.243 | 0.90 +/- 0.02 | 50 | 2400 | |
| 896.038 | 105 | 0.03 | 360 | 7 days | 25.7 | 10 | 1.495 | 0.90 +/- 0.02 | 50 | 2400 | |
| 896.11 | 105 | 0.03 | 360 | 7 days | 25.7 | 10 | - | - | 50 | 2400 | |
| 896.31 | 105 | 0.03 | 360 | 7 days | 25.7 | 10 | - | - | 50 | 1600 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
