Hybrid implantable ports
Seesite
Popis
SEESITE venous implantable port kit with standard port, pressure injectable, high flow rate and peelable introducer (8Fr or 10Fr). Port with… Přečtěte si více
Indikace
SEESITE implantable ports allow repeated and prolonged access to the venous system.
SEESITE implantable ports are used to administer chemotherapy, antibiotics and antiviral drugs.
They can also be used for total parenteral nutrition (TPN), collection of blood samples and transfusion of blood or blood products.
All SEESITE references can be used for high flow injection of contrast media during CT procedures (compatible with high pressure injectors, see IFU Chapter IX/ B).
The SEESITE placement kits are composed of ancillary suitable for placement of implantable ports through echo-guided puncture (see IFU chapter VIII/ A).
Popis

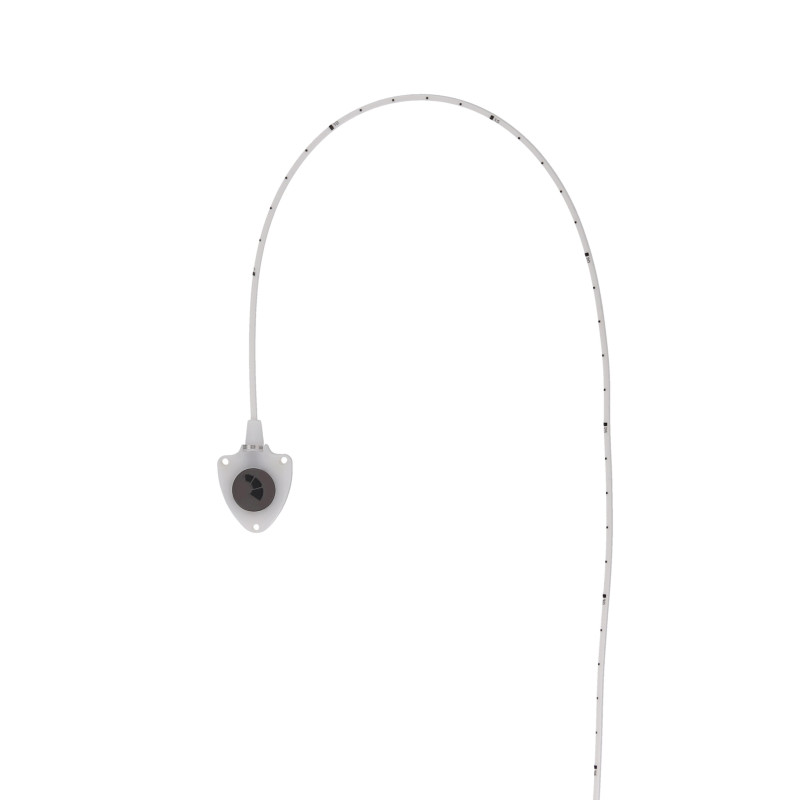

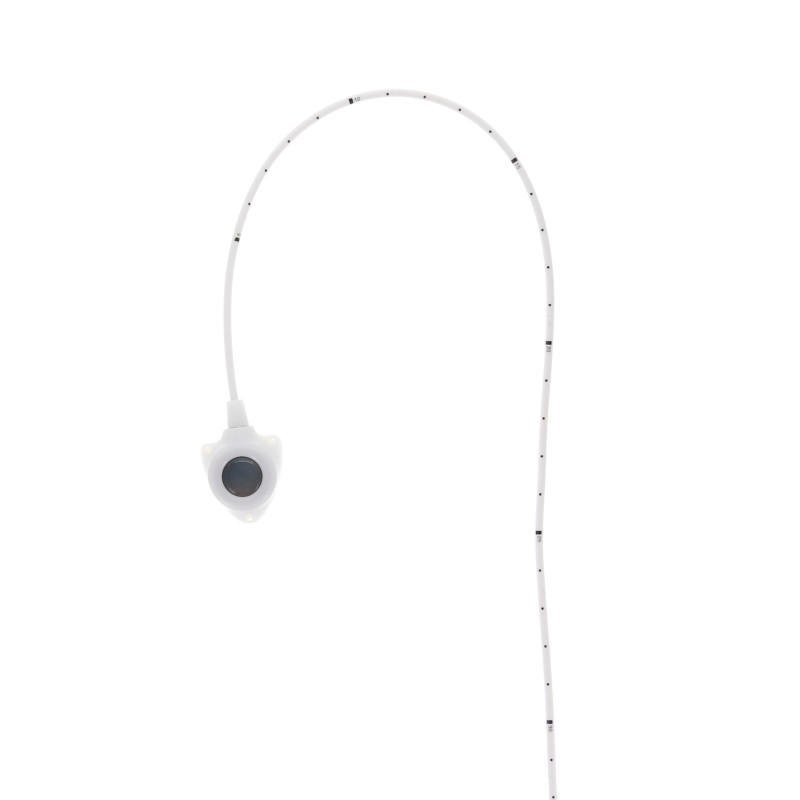

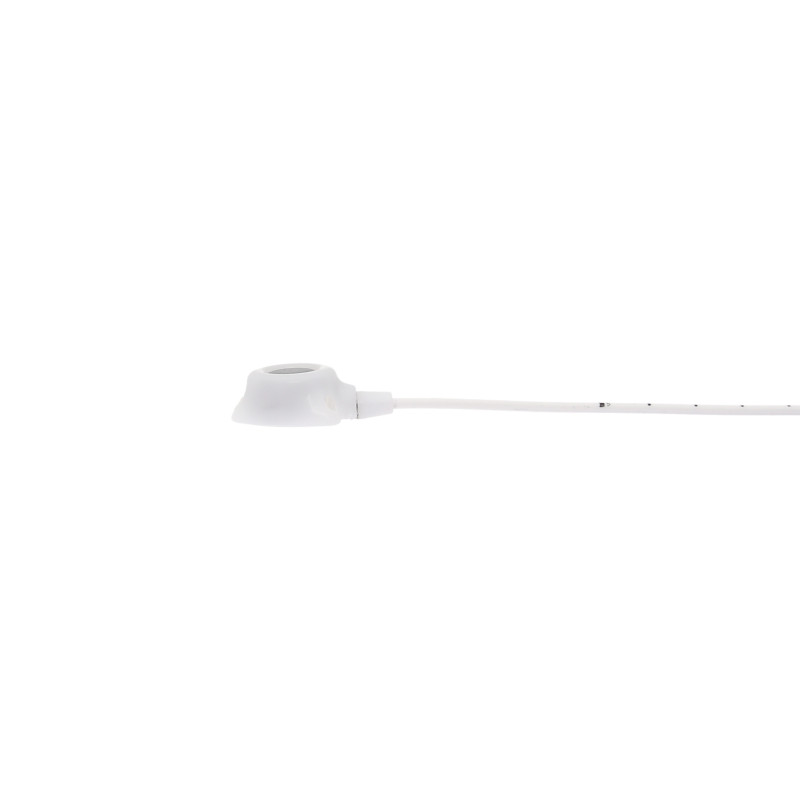

SEESITE venous implantable port kit with standard port, pressure injectable, high flow rate and peelable introducer (8Fr or 10Fr).Port with catheter to connect in silicone (codes VPE4008SEE and VPE40010SEE) or in polyurethane (code VPE4018SEE).
Each SEESITE placement kit contains:
1) A pouch containing:

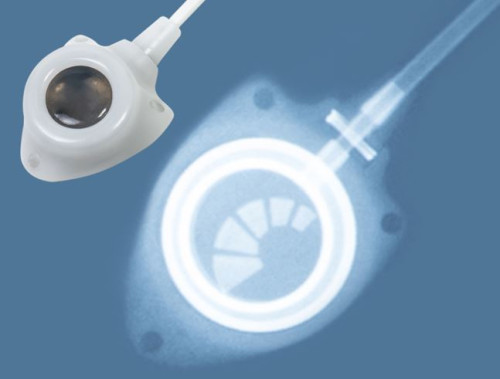

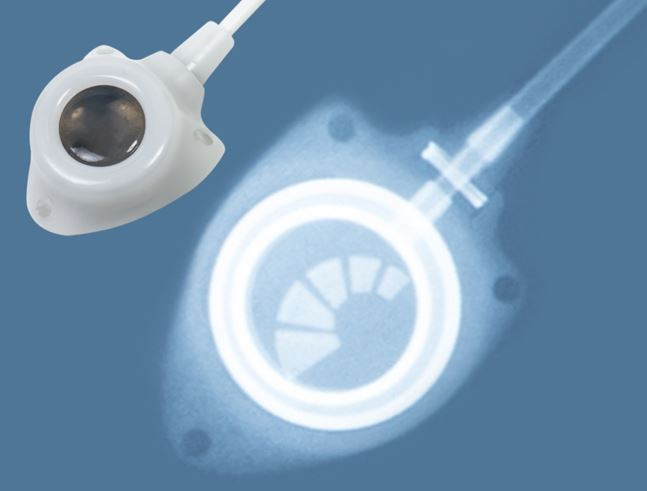

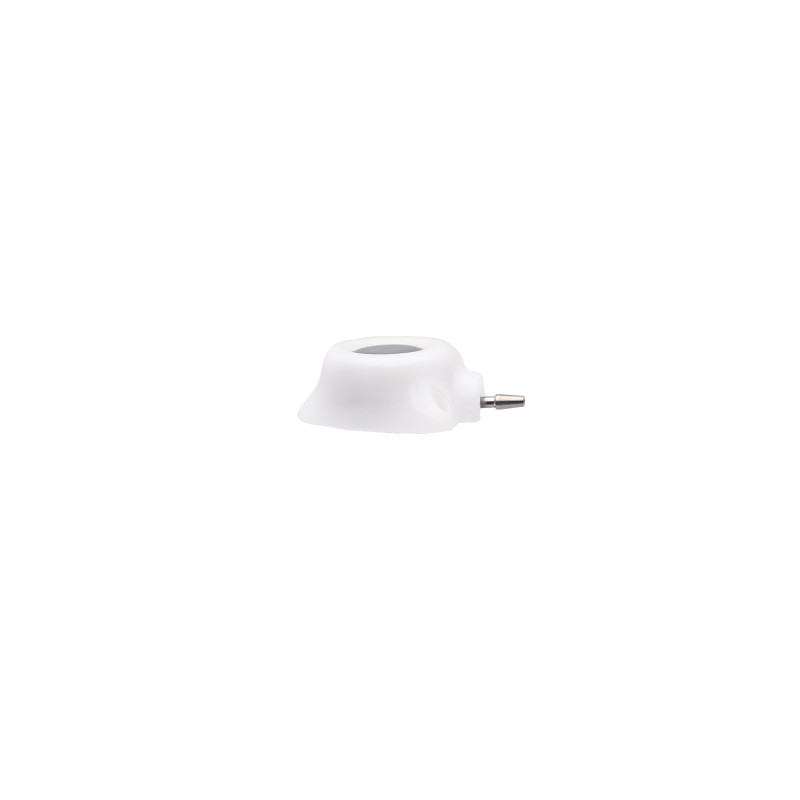

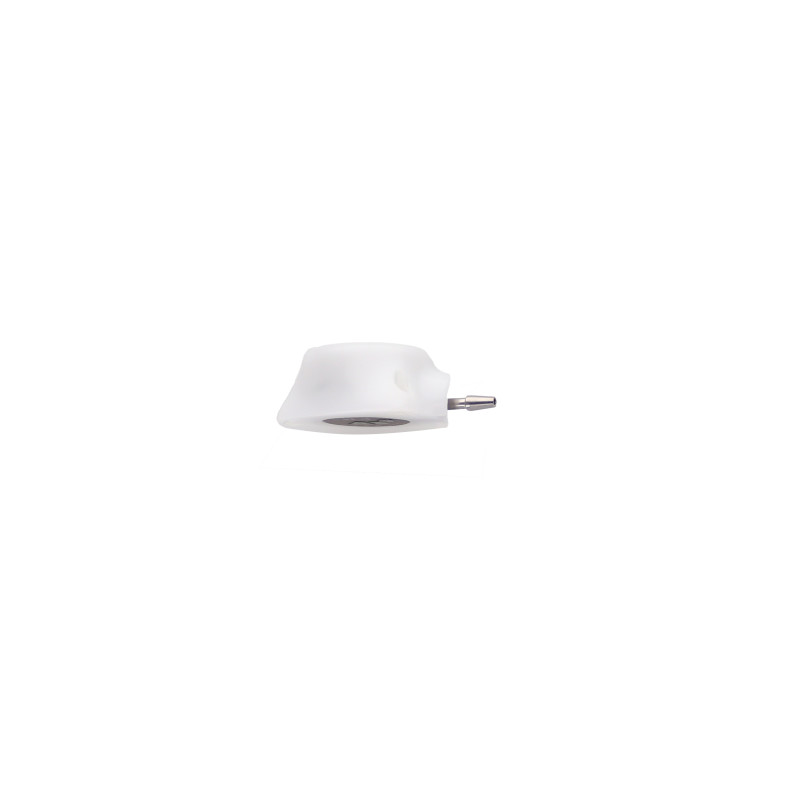

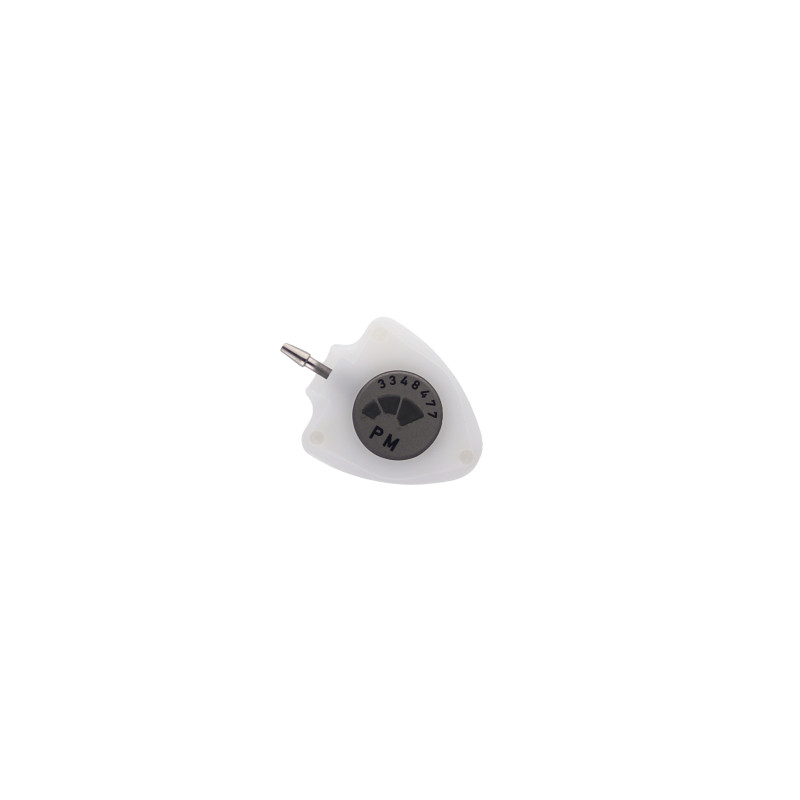

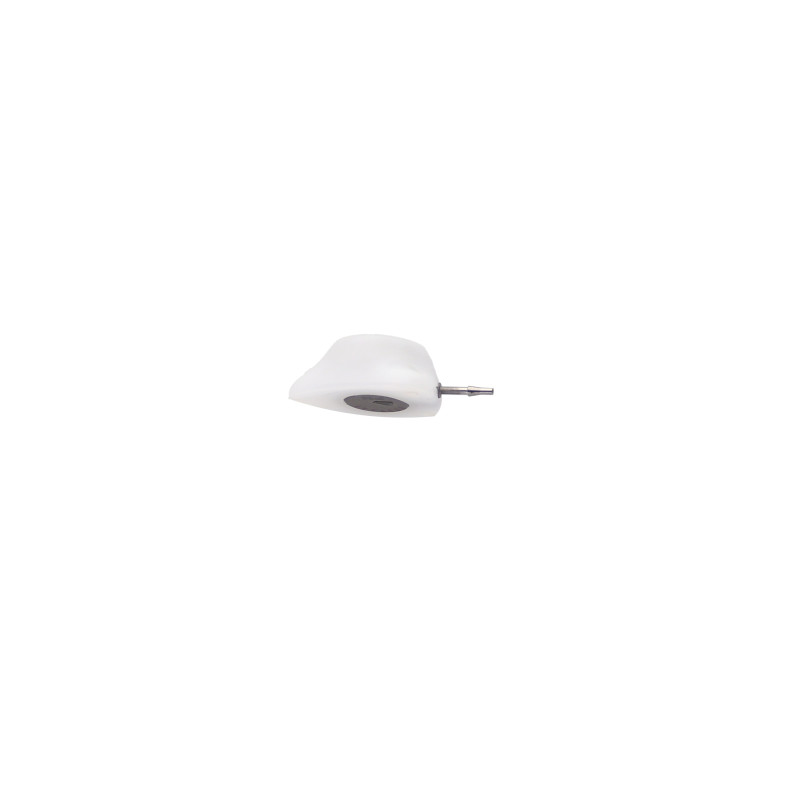

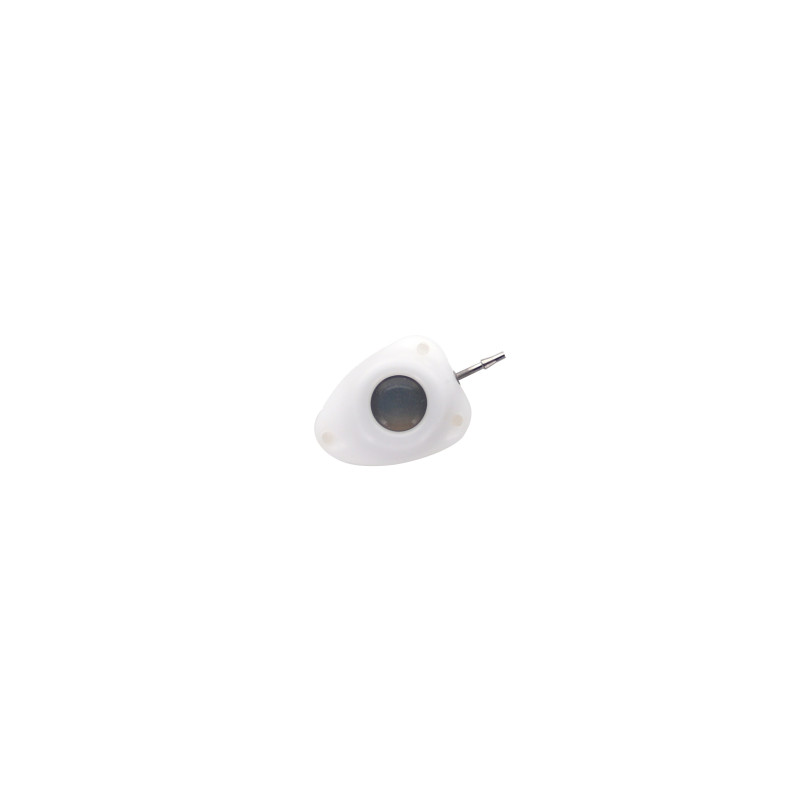

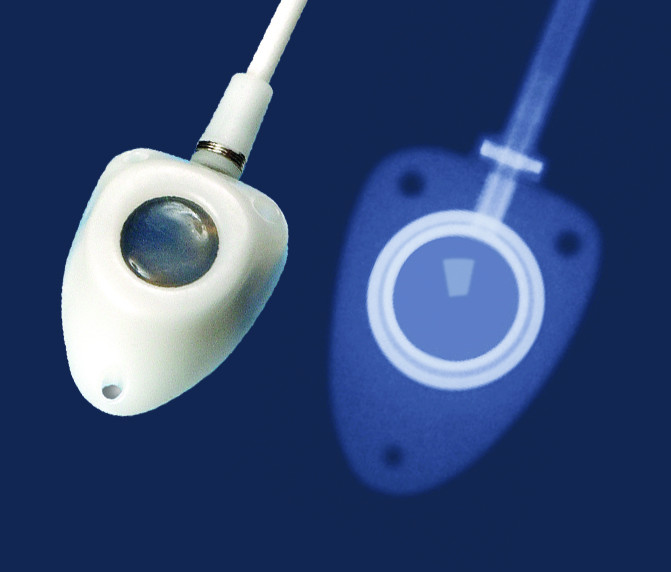

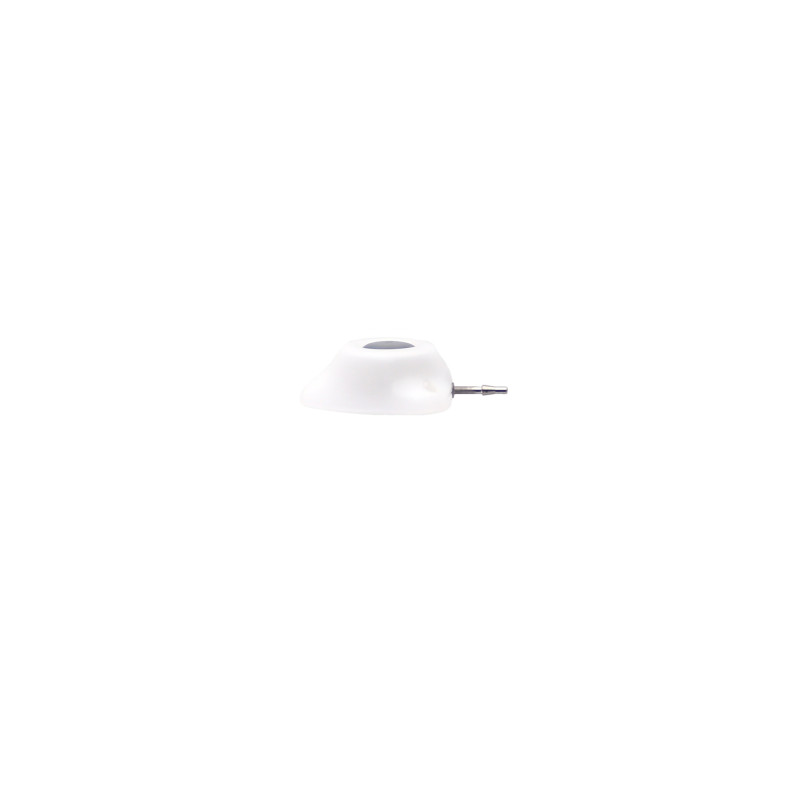

- One titanium and POM (polyoxymethylene) Standard port with a silicone septum, silicone septum, silicone filled suture holes and radiopaque marking,
- One XRO silicone or polyurethane catheter. Graduation every cm with a numbered marking every 5cm from 5 to 40cm,
- Two connection rings with a Phynox thread containing nickel,
- One straight Huber needle (22G),
- One PPS CT safety Huber needle with connecting line, compatible with contrast media injection during scan procedures – 20G – 20mm,
- One vein pick,
- One flushing connector, pre-connected to the catheter,
- One introducer with peelable sheath,
- One metallic guidewire “J” type graduated every 10cm with J straightener (0.035’’ – 60 cm),
- One echogenic introducer needle, 70mm usable length – 18G,
- One tunneler Ø 2.5mm – Length: 23cm,
- One 10ml syringe,
- One Raulerson metallic guidewire introducer.
2) A CIV-FLEX Echoset containing:
- One latex-free echo-guidance probe sheath,
- One sterile ultrasound gel pouch,
- Two supporting elastic straps for the protective cover,
- One sterile drape.
Reference a funkce
| Implantable port | Catheter | Introducer | Balení | |||||
|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Prim. vol. ml | Ext. Ø mm | Material | Connection | Diameter Fr | Jednotky/balení | Jednotky/karton |
| 2005SEE | 0.2 | 0.65 x 1.65 | Silicone | To connect | 5 | 1 | 1 | |
| 3007SEE | 0.4 | 1.2 x 2.16 | Silicone | To connect | 7 | 1 | 1 | |
| 3008SEE | 0.4 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
| 3017SEE | 0.4 | 1.4 x 2.1 | Polyurethane | To connect | 7 | 1 | 1 | |
| 40010SEE | 0.6 | 1.57 x 3.18 | Silicone | To connect | 10 | 1 | 1 | |
| 4008SEE | 0.6 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
| 4018SEE | 0.6 | 1.7 x 2.65 | Polyurethane | To connect | 8 | 1 | 1 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
