Hybrid implantable ports
Polysite echo
Popis
Pediatric or adult venous implantable port with peelable introducer (5Fr, 6Fr or 7Fr) and CIV-Flex Echoset. Micro implantable port with catheter to… Přečtěte si více
Indikace
POLYSITE implantable ports allow repeated and prolonged access to the venous system.
POLYSITE implantable ports are used to administer chemotherapy, antibiotics and antiviral drugs. They can also be used for parenteral nutrition, collection of blood samples and transfusion of blood or blood products. All POLYSITE references can be used for pressure injection of contrast media during CT procedures (compatible with high pressure injectors, cf IFU Chap. USE AND MAINTENANCE part. INJECTION OF CONTRAST MEDIA DURING CT SCAN PROCEDURES).
The POLYSITE ECHO placement kits are used in the same indications and consist of instrumentation suitable for placement of implantable ports by echo-guided puncture (see chap. INSERTION TECHNIQUES).
Popis

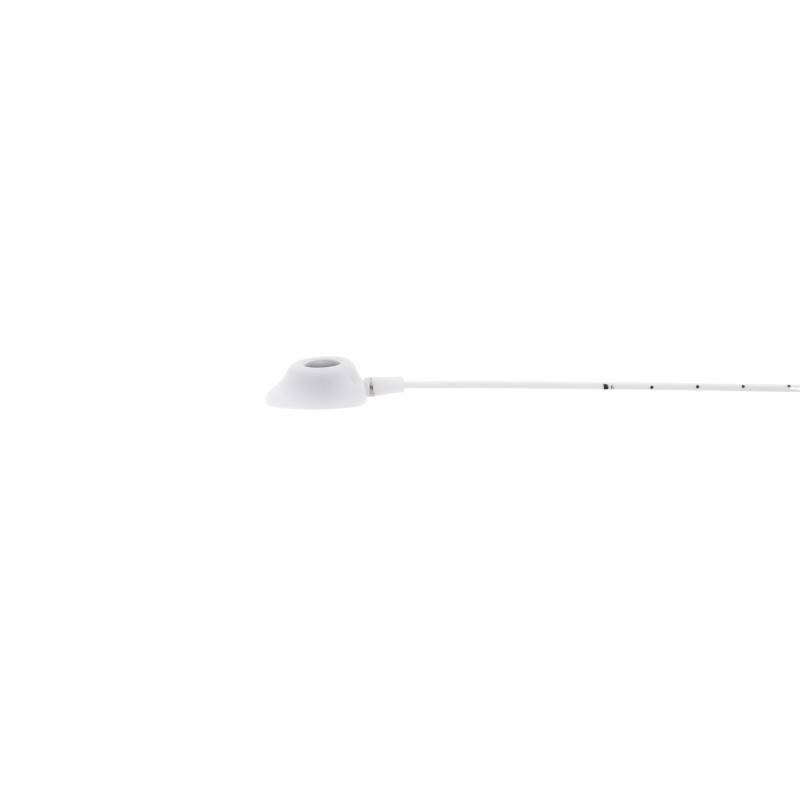

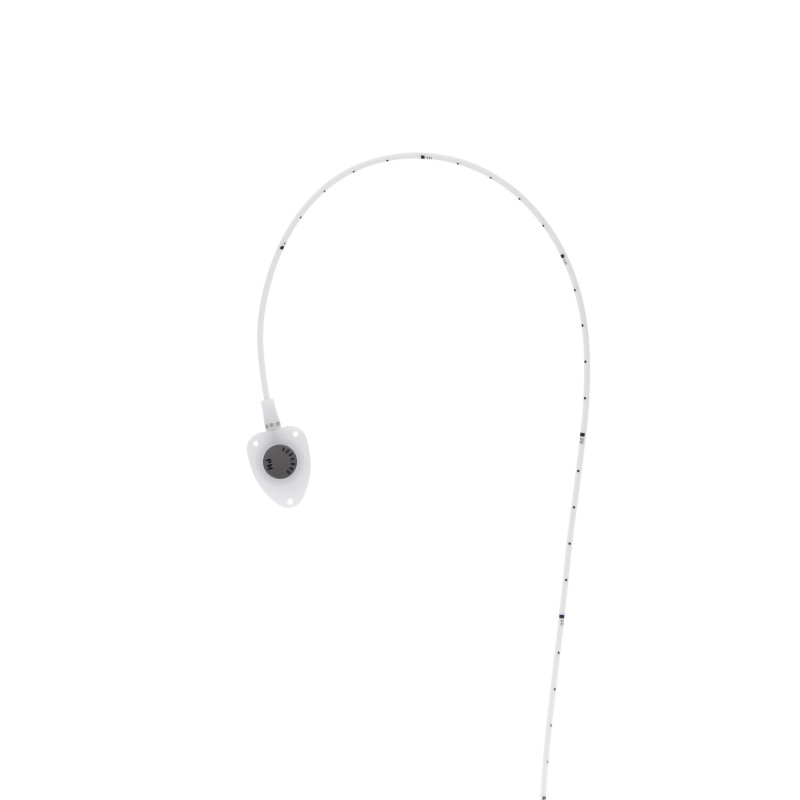

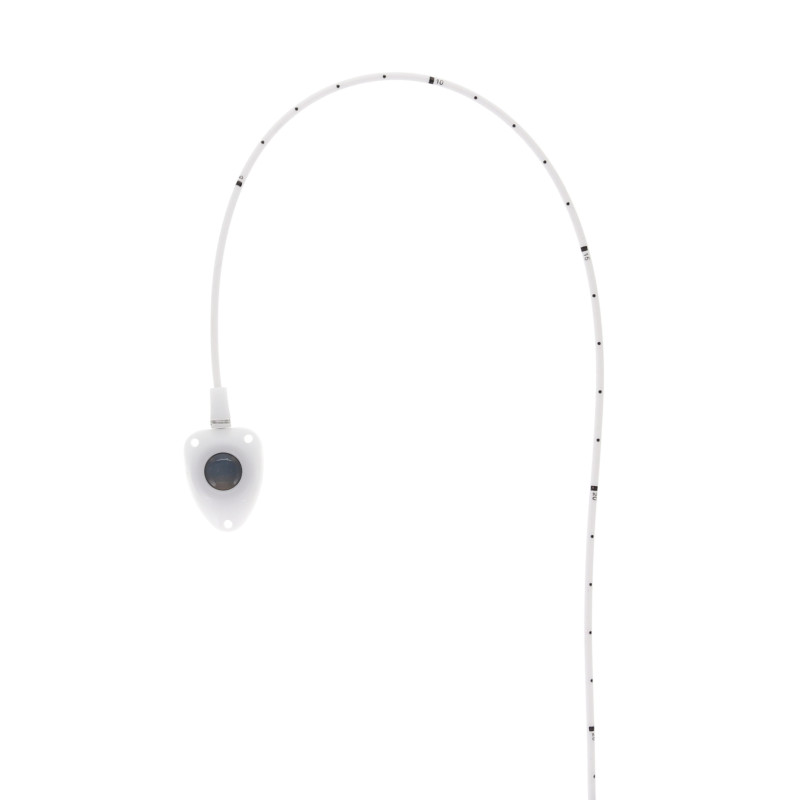

Pediatric or adult venous implantable port with peelable introducer (5Fr, 6Fr or 7Fr) and CIV-Flex Echoset.Micro implantable port with catheter to connect in silicone (pediatric code VPE2005ECHO and aldut code VPE2007ECHO) or in polyurethane (adult code VPE2016ECHO).
Each Echo-guided placement kit Polysite ECHO contains:
1 - A pouch containing:
- One titanium and POM (polyoxymethylene) Micro port with a silicone septum,
- One 60cm (for the pediatrics codes with a 5Fr catheter) or 80cm (for the others codes) XRO silicone or polyurethane catheter. Graduation every cm with a numbered marking every 5cm from 5 to 40cm,
- Two connection rings with a Phynox thread containing nickel,
- One straight Huber needle - 22G,
- One vein pick,
- One flushing connector pre-connected to the catheter,
- One peelable introducer - 12cm (for the pediatrics codes) and 17cm (for the adult code),
- One 10ml syringe,
- One Raulerson metallic guidewire introducer,
- One marked J guidewire with thumbfeed J straightener (0.018''- 40mm for the pediatrics codes and 0.035’’ – 60mm for the adult code),
- One echogenous puncture needle - 20G - 38mm useable length for the pediatrics codes and 18G – 70mm for the adult code,
- One tunneler Ø 2mm - Length 18cm (for the pediatrics codes) or Ø 2.5mm – Length 23cm (for the adult code).
2 - A CIV-FLEX Echoset containing:
- One latex-free guidance probe sheath 14 x 147cm,
- One sterile ultrasound gel pouch,
- Two supporting elastic straps for the protective cover,
- One sterile drape.
Reference a funkce
| Implantable port | Catheter | Introducer | Balení | |||||
|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Prim. vol. ml | Ext. Ø mm | Material | Connection | Diameter Fr | Jednotky/balení | Jednotky/karton |
| 2005 ECHO | 0.2 | 0.65 x 1.65 | Silicone | To connect | 5 | 1 | 1 | |
| 2007 ECHO | 0.2 | 1.02 x 2.16 | Silicone | To connect | 7 | 1 | 1 | |
| 2016 ECHO | 0.2 | 1.3 x 2.0 | Polyurethane | To connect | 6 | 1 | 1 | |
| 3007 ECHO | 0.35 | 1.02 x 2.16 | Silicone | To connect | 7 | 1 | 1 | |
| 3008 ECHO | 0.35 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
| 3017 ECHO | 0.35 | 1.45 x 2.3 | Polyurethane | To connect | 7 | 1 | 1 | |
| 3107 ECHO | 0.35 | 1.02 x 2.16 | Silicone | Pre-connected | 7 | 1 | 1 | |
| 3108 ECHO | 0.35 | 1.2 x 2.4 | Silicone | Pre-connected | 8 | 1 | 1 | |
| 4008 ECHO | 0.55 | 1.2 x 2.4 | Silicone | Standard | 8 | 1 | 1 | |
| 4017 ECHO | 0.55 | 1.45 x 2.3 | Polyurethane | Standard | 7 | 1 | 1 | |
| 4019 ECHO | 0.55 | 1.9 x 3.0 | Polyurethane | Standard | 9 | 1 | 1 | |
| 4108 ECHO | 0.55 | 1.2 x 2.4 | Silicone | Pre-connected | 8 | 1 | 1 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
Brochure_Polysite
-
Brochure Vascular Access Range
-
Návod k použití
