Safety Huber needle
PPS Flow+
Popis
PPS® Flow+ are curved safety Huber needles with extension line. PPS® Flow+ curved safety Huber needles are available: … Přečtěte si více
Indikace
PPS® Flow+ safety Huber needles are indicated for the administration or withdrawal of fluids through implantable ports.
PPS® Flow+ are designed to prevent blood-borne pathogen exposures caused by accidental needle punctures. PPS® Flow+ without Luer BD Q-Syte does not protect against other routes of blood-borne pathogen transmission.

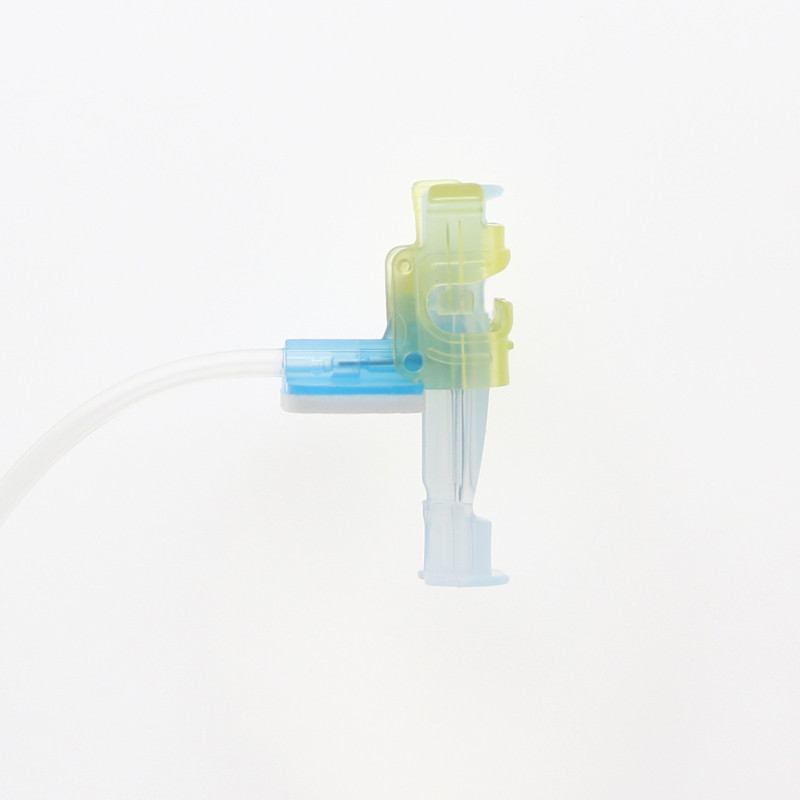

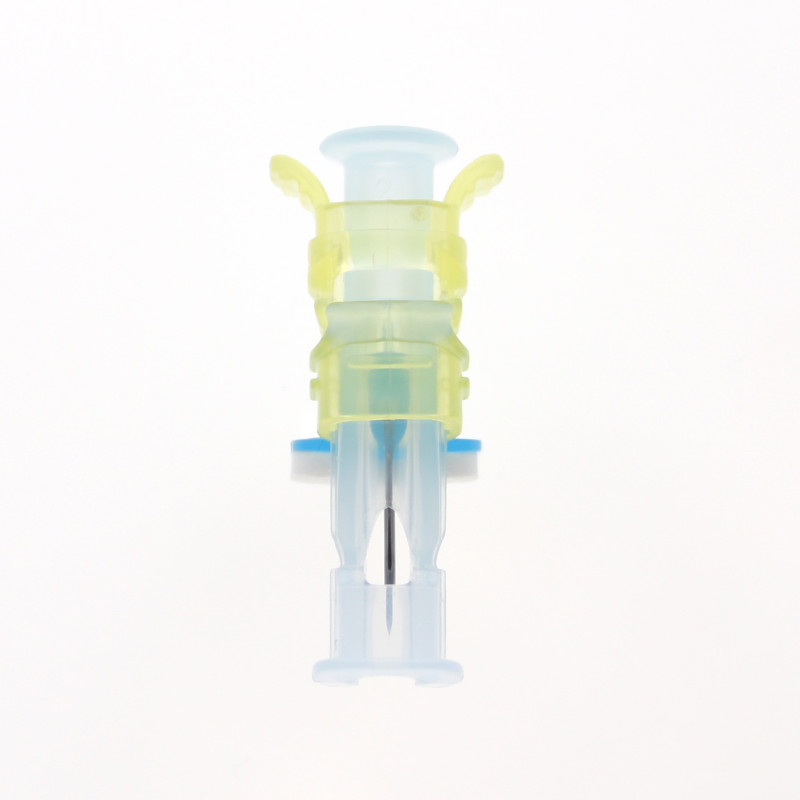

Single hand removal of the safety Huber needle PPS® Flow+ automatically and simultaneously generates a positive pressure (saline injection) in the implantable port, thus limiting the risk of blood clot obstruction of the distal tip of the catheter.
Popis

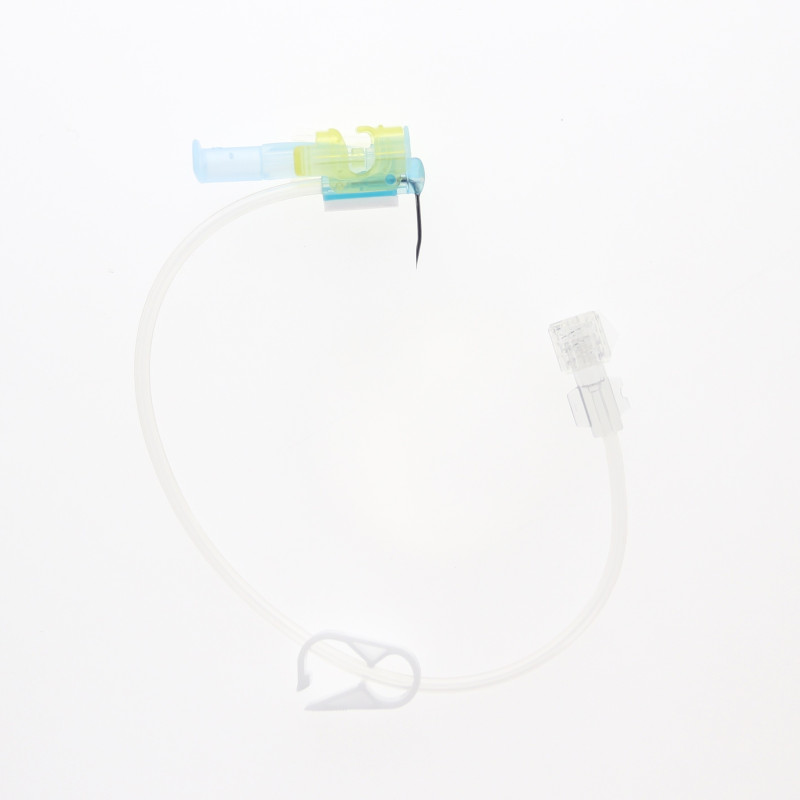

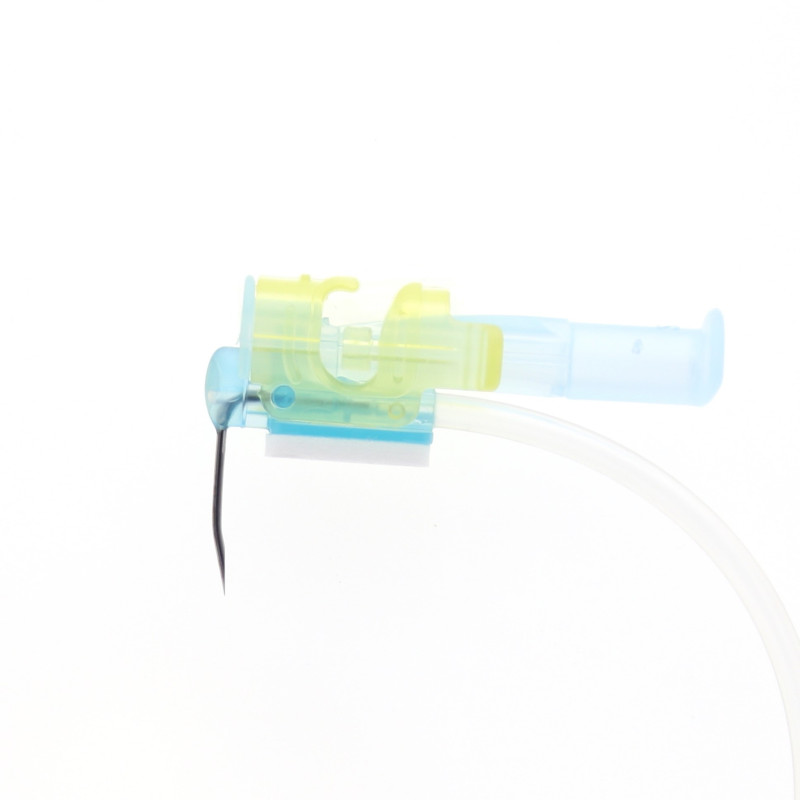

PPS® Flow+ are curved safety Huber needles with extension line.PPS® Flow+ curved safety Huber needles are available:
- in various lengths and diameters

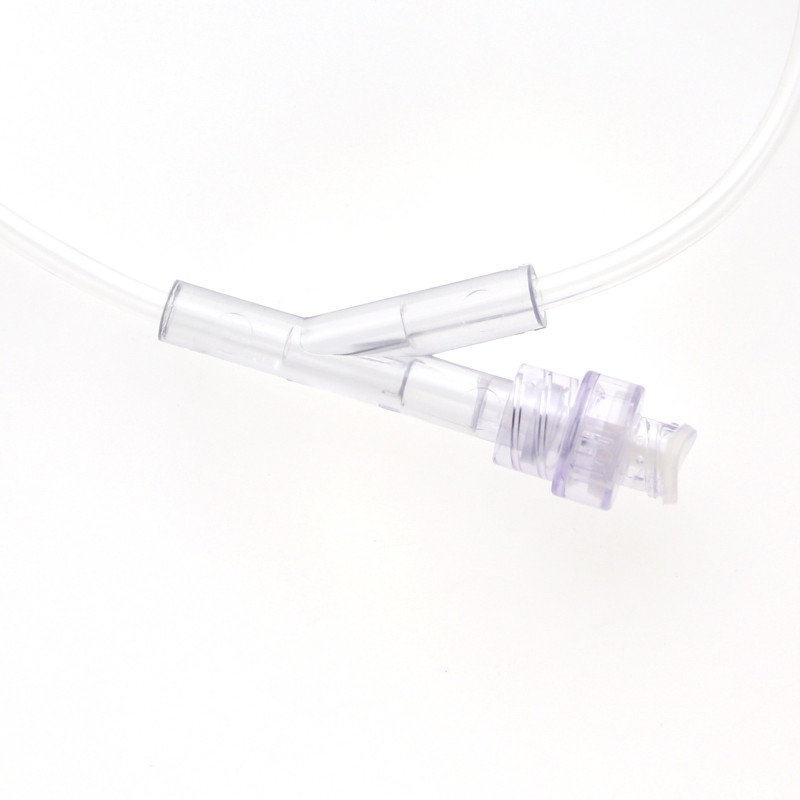

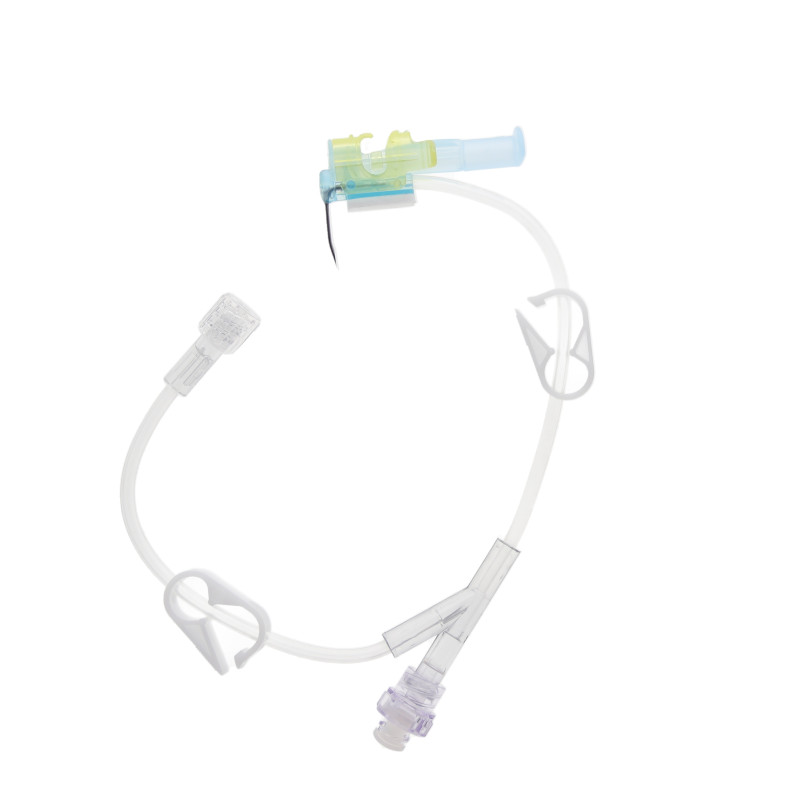

- with or without a lateral injection site (“Y” site)
PPS® Flow+ codes 71xxxx are with a Y site.
They are provided with:
- Luer-lock connectors on which are screwed
o an injection sites with a silicone septum on the “Y” connectors (for product codes with “Y”site )
- and clamps.
Tubing is DEHP (di-2 ethylhexyl-phthalate) free.
PPS® Flow+ are packaged in 12 unit-cartons.
Reference a funkce
| Needle | Balení | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Kód | Diameter G | Ext. Ø mm | Priming volume ml | Length mm | Jednotky/balení | Jednotky/karton |
| 701507 | 22 | 0.7 | 0.95 | 15 | 12 | 360 | |
| 701509 | 20 | 0.9 | 0.95 | 15 | 12 | 360 | |
| 701511 | 19 | 1.1 | 0.95 | 15 | 12 | 360 | |
| 701707 | 22 | 0.7 | 0.95 | 17 | 12 | 360 | |
| 701709 | 20 | 0.9 | 0.95 | 17 | 12 | 360 | |
| 701711 | 19 | 1.1 | 0.95 | 17 | 12 | 360 | |
| 702007 | 22 | 0.7 | 0.95 | 20 | 12 | 360 | |
| 702009 | 20 | 0.9 | 0.95 | 20 | 12 | 360 | |
| 702011 | 19 | 1.1 | 0.95 | 20 | 12 | 360 | |
| 702507 | 22 | 0.7 | 0.95 | 25 | 12 | 360 | |
| 702509 | 20 | 0.9 | 0.95 | 25 | 12 | 360 | |
| 702511 | 19 | 1.1 | 0.95 | 25 | 12 | 360 | |
| 703007 | 22 | 0.7 | 0.95 | 30 | 12 | 360 | |
| 703009 | 20 | 0.9 | 0.95 | 30 | 12 | 360 | |
| 703011 | 19 | 1.1 | 0.95 | 30 | 12 | 360 | |
| 703507 | 22 | 0.7 | 0.95 | 35 | 12 | 360 | |
| 703509 | 20 | 0.9 | 0.95 | 35 | 12 | 360 | |
| 703511 | 19 | 1.1 | 0.95 | 35 | 12 | 360 | |
| 711507 | 22 | 0.7 | 1.1 | 15 | 12 | 360 | |
| 711509 | 20 | 0.9 | 1.1 | 15 | 12 | 360 | |
| 711511 | 19 | 1.1 | 1.1 | 15 | 12 | 360 | |
| 711707 | 22 | 0.7 | 1.1 | 17 | 12 | 360 | |
| 711709 | 20 | 0.9 | 1.1 | 17 | 12 | 360 | |
| 711711 | 19 | 1.1 | 1.1 | 17 | 12 | 360 | |
| 712007 | 22 | 0.7 | 1.1 | 20 | 12 | 360 | |
| 712009 | 20 | 0.9 | 1.1 | 20 | 12 | 360 | |
| 712011 | 19 | 1.1 | 1.1 | 20 | 12 | 360 | |
| 712507 | 22 | 0.7 | 1.1 | 25 | 12 | 360 | |
| 712509 | 20 | 0.9 | 1.1 | 25 | 12 | 360 | |
| 712511 | 19 | 1.1 | 1.1 | 25 | 12 | 360 | |
| 713007 | 22 | 0.7 | 1.1 | 30 | 12 | 360 | |
| 713009 | 20 | 0.9 | 1.1 | 30 | 12 | 360 | |
| 713011 | 19 | 1.1 | 1.1 | 30 | 12 | 360 | |
| 713507 | 22 | 0.7 | 1.1 | 35 | 12 | 360 | |
| 713509 | 20 | 0.9 | 1.1 | 35 | 12 | 360 | |
| 713511 | 19 | 1.1 | 1.1 | 35 | 12 | 360 | |
| 721507 | 22 | 0.7 | 0.82 | 15 | 12 | 360 | |
| 721509 | 20 | 0.9 | 0.82 | 15 | 12 | 360 | |
| 721511 | 19 | 1.1 | 0.82 | 15 | 12 | 360 | |
| 721707 | 22 | 0.7 | 0.82 | 17 | 12 | 360 | |
| 721709 | 20 | 0.9 | 0.82 | 17 | 12 | 360 | |
| 721711 | 19 | 1.1 | 0.82 | 17 | 12 | 360 | |
| 722007 | 22 | 0.7 | 0.82 | 20 | 12 | 360 | |
| 722009 | 20 | 0.9 | 0.82 | 20 | 12 | 360 | |
| 722011 | 19 | 1.1 | 0.82 | 20 | 12 | 360 | |
| 722507 | 22 | 0.7 | 0.82 | 25 | 12 | 360 | |
| 722509 | 20 | 0.9 | 0.82 | 25 | 12 | 360 | |
| 722511 | 19 | 1.1 | 0.82 | 25 | 12 | 360 | |
| 723007 | 22 | 0.7 | 0.82 | 30 | 12 | 360 | |
| 723009 | 20 | 0.9 | 0.82 | 30 | 12 | 360 | |
| 723011 | 19 | 1.1 | 0.82 | 30 | 12 | 360 | |
| 723507 | 22 | 0.7 | 0.82 | 35 | 12 | 360 | |
| 723509 | 20 | 0.9 | 0.82 | 35 | 12 | 360 | |
| 723511 | 19 | 1.1 | 0.82 | 35 | 12 | 360 | |
| 731507 | 22 | 0.7 | 1.02 | 15 | 12 | 360 | |
| 731509 | 20 | 0.9 | 1.02 | 15 | 12 | 360 | |
| 731511 | 19 | 1.1 | 1.02 | 15 | 12 | 360 | |
| 731707 | 22 | 0.7 | 1.02 | 17 | 12 | 360 | |
| 731709 | 20 | 0.9 | 1.02 | 17 | 12 | 360 | |
| 731711 | 19 | 1.1 | 1.02 | 17 | 12 | 360 | |
| 732007 | 22 | 0.7 | 1.02 | 20 | 12 | 360 | |
| 732009 | 20 | 0.9 | 1.02 | 20 | 12 | 360 | |
| 732011 | 19 | 1.1 | 1.02 | 20 | 12 | 360 | |
| 732507 | 22 | 0.7 | 1.02 | 25 | 12 | 360 | |
| 732509 | 20 | 0.9 | 1.02 | 25 | 12 | 360 | |
| 732511 | 19 | 1.1 | 1.02 | 25 | 12 | 360 | |
| 733007 | 22 | 0.7 | 1.02 | 30 | 12 | 360 | |
| 733009 | 20 | 0.9 | 1.02 | 30 | 12 | 360 | |
| 733011 | 19 | 1.1 | 1.02 | 30 | 12 | 360 | |
| 733507 | 22 | 0.7 | 1.02 | 35 | 12 | 360 | |
| 733509 | 20 | 0.9 | 1.02 | 35 | 12 | 360 | |
| 733511 | 19 | 1.1 | 1.02 | 35 | 12 | 360 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
