Safety Huber needle with Qimono
Qimoflow+
Popis
Qimoflow+ are curved safety Huber needles fitted with an extension tube, available in various lengths and diameters. Qimoflow+ is provided with a… Přečtěte si více
Indikace
qimoflow+ safety Huber needles are indicated for the administration or withdrawal of fluids through implantable ports.
Popis

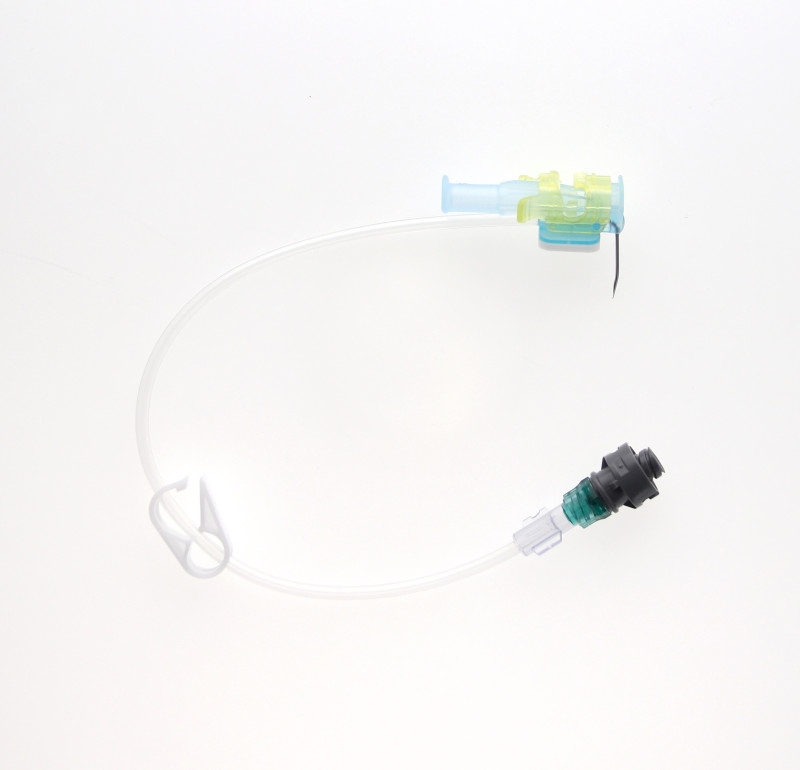

Qimoflow+ are curved safety Huber needles fitted with an extension tube, available in various lengths and diameters.Qimoflow+ is provided with a safety adaptor (closed system) qimofemale, pre-sealed to the female Luer-lock at the tip of the tubing. The huber needle is also supplied with a clamp.
Qimoflow+ are designed to prevent blood-borne pathogen exposures caused by accidental needlestick injuries.Single hand removal of the safety Huber needle Qimoflow+ automatically and simultaneously generates the injection of saline into the implantable port to perform the positive pressure during removal. This thus limits the risk of blood clot obstruction of the tip of the catheter.
The references vary depending on the usable length of the needle and the gauge size of the needle:
- 22G: 741507, 741707, 742007, 742507, 743007, 743507 (refer to the technical file),
- 20G: 741509, 741709, 742009, 742509, 743009, 743509 (refer to the technical file),
- 19G: 741511, 741711, 742011, 742511, 743011, 743511 (refer to the technical file).
The 15mm-length is for use with paediatric patients and the 35 mm-length with stout patients.
Qimoflow+ is not made with dry or natural rubber latex (raw materials and packaging).
Qimoflow+ are packaged in 10 unit-cartons.
Reference a funkce
| Needle | Balení | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Kód | Diameter G | Int. Ø mm | Priming volume ml | Length mm | Jednotky/balení | Jednotky/karton |
| 741507 | 22 | 0.7 | 0.95 | 15 | 10 | 300 | |
| 741509 | 20 | 0.9 | 0.95 | 15 | 10 | 300 | |
| 741511 | 19 | 1.1 | 0.95 | 15 | 10 | 300 | |
| 741707 | 22 | 0.7 | 0.95 | 17 | 10 | 300 | |
| 741709 | 20 | 0.9 | 0.95 | 17 | 10 | 300 | |
| 741711 | 19 | 1.1 | 0.95 | 17 | 10 | 300 | |
| 742007 | 22 | 0.7 | 0.95 | 20 | 10 | 300 | |
| 742009 | 20 | 0.9 | 0.95 | 20 | 10 | 300 | |
| 742011 | 19 | 1.1 | 0.95 | 20 | 10 | 300 | |
| 742507 | 22 | 0.7 | 0.95 | 25 | 10 | 300 | |
| 742509 | 20 | 0.9 | 0.95 | 25 | 10 | 300 | |
| 742511 | 19 | 1.1 | 0.95 | 25 | 10 | 300 | |
| 743007 | 22 | 0.7 | 0.95 | 30 | 10 | 300 | |
| 743009 | 20 | 0.9 | 0.95 | 30 | 10 | 300 | |
| 743011 | 19 | 1.1 | 0.95 | 30 | 10 | 300 | |
| 743507 | 22 | 0.7 | 0.95 | 35 | 10 | 300 | |
| 743509 | 20 | 0.9 | 0.95 | 35 | 10 | 300 | |
| 743511 | 19 | 1.1 | 0.95 | 35 | 10 | 300 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
Dokumentace
-
Brochure Qimoflow+
-
Návod k použití
