Vascular grafts - knitted polyester
Polymaille Extra Thin
Popis
polymaille® extra thin devices are uniform straight tubular vascular grafts made of knitted polyester impregnated with type I bovine collagen… Přečtěte si více
Indikace
polymaille® extra thin vascular grafts are intended for replacement or bypass of arteries during open-surgical vascular repair procedures.
Popis

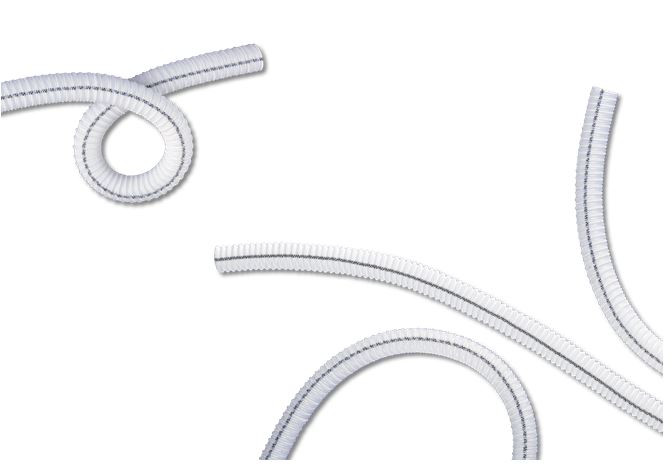

polymaille® extra thin devices are uniform straight tubular vascular grafts made of knitted polyester impregnated with type I bovine collagen. They are available with SHR® reinforcement (codes PMETR) or without SHR® reinforcement (codes PMET).polymaille ® extra thin vascular prostheses have a particularly thin wall thickness (around 0.32 mm)
The non-cuttable radial reinforcement made with SHR® (Stretch Helicolial Reinforcement) technology, guarantees improved resistance to external compression. The helicoidal form adapts to the embossing on the graft and thus has a “stretch” effect on the reinforced portion, guaranteeing improved kink resistance.
polymaille® extra thin vascular grafts are available in different sizes (diameter and length) to adapt to patients’ anatomical characteristics (please refer to the characteristics below).
Reference a funkce
| Vascular prostheses | Balení | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Nominal diameter mm | Usable length cm | Ext. diameter mm | SHR length cm | Proximal length cm | Distal length cm | Jednotky/balení | Jednotky/karton |
| PMET060040 | 6 | 40 | - | - | - | - | 1 | 1 | |
| PMET060070 | 6 | 70 | - | - | - | - | 1 | 1 | |
| PMET060100 | 6 | 100 | - | - | - | - | 1 | 1 | |
| PMET070040 | 7 | 40 | - | - | - | - | 1 | 1 | |
| PMET070070 | 7 | 70 | - | - | - | - | 1 | 1 | |
| PMET070100 | 7 | 100 | - | - | - | - | 1 | 1 | |
| PMET080040 | 8 | 40 | - | - | - | - | 1 | 1 | |
| PMET080070 | 8 | 70 | - | - | - | - | 1 | 1 | |
| PMET080100 | 8 | 100 | - | - | - | - | 1 | 1 | |
| PMET100040 | 10 | 40 | - | - | - | - | 1 | 1 | |
| PMET100070 | 10 | 70 | - | - | - | - | 1 | 1 | |
| PMET100100 | 10 | 100 | - | - | - | - | 1 | 1 | |
| PMETR06040010 | - | 40 | 6 | 10 | 20 | 10 | 1 | 1 | |
| PMETR06040015 | - | 40 | 6 | 15 | 15 | 10 | 1 | 1 | |
| PMETR06040020 | - | 40 | 6 | 20 | 10 | 10 | 1 | 1 | |
| PMETR06070020 | - | 70 | 6 | 20 | 30 | 20 | 1 | 1 | |
| PMETR06070030 | - | 70 | 6 | 30 | 20 | 20 | 1 | 1 | |
| PMETR06070040 | - | 70 | 6 | 40 | 20 | 10 | 1 | 1 | |
| PMETR06100060 | - | 100 | 6 | 60 | 25 | 15 | 1 | 1 | |
| PMETR07040010 | - | 40 | 7 | 10 | 20 | 10 | 1 | 1 | |
| PMETR07040015 | - | 40 | 7 | 15 | 15 | 10 | 1 | 1 | |
| PMETR07040020 | - | 40 | 7 | 20 | 10 | 10 | 1 | 1 | |
| PMETR07070020 | - | 70 | 7 | 20 | 30 | 20 | 1 | 1 | |
| PMETR07070030 | - | 70 | 7 | 30 | 20 | 20 | 1 | 1 | |
| PMETR07070040 | - | 70 | 7 | 40 | 20 | 10 | 1 | 1 | |
| PMETR07100060 | - | 100 | 7 | 60 | 25 | 15 | 1 | 1 | |
| PMETR08040010 | - | 40 | 8 | 10 | 20 | 10 | 1 | 1 | |
| PMETR08040015 | - | 40 | 8 | 15 | 15 | 10 | 1 | 1 | |
| PMETR08040020 | - | 40 | 8 | 20 | 10 | 10 | 1 | 1 | |
| PMETR08070020 | - | 70 | 8 | 20 | 30 | 20 | 1 | 1 | |
| PMETR08070030 | - | 70 | 8 | 30 | 20 | 20 | 1 | 1 | |
| PMETR08070040 | - | 70 | 8 | 40 | 20 | 10 | 1 | 1 | |
| PMETR08100060 | - | 100 | 8 | 60 | 25 | 15 | 1 | 1 | |
| PMETR10040010 | - | 40 | 10 | 10 | 20 | 10 | 1 | 1 | |
| PMETR10040015 | - | 40 | 10 | 15 | 15 | 10 | 1 | 1 | |
| PMETR10040020 | - | 40 | 10 | 20 | 10 | 10 | 1 | 1 | |
| PMETR10070020 | - | 70 | 10 | 20 | 30 | 20 | 1 | 1 | |
| PMETR10070030 | - | 70 | 10 | 30 | 20 | 20 | 1 | 1 | |
| PMETR10070040 | - | 70 | 10 | 40 | 20 | 10 | 1 | 1 | |
| PMETR10100060 | - | 100 | 10 | 60 | 25 | 15 | 1 | 1 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ano
-
Bez pyrogenu Ano
