Dialysis catheters
Trilysecath
Popis

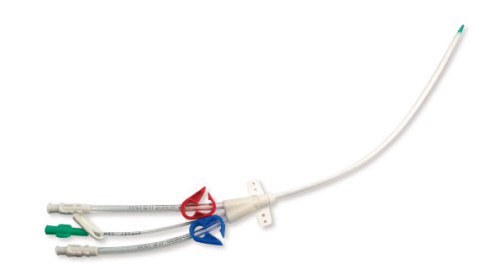

Triple lumen polyurethane catheter for haemodialysis and high volume infusions. Fully radiopaque catheter introduced by the Seldinger technique… Přečtěte si více
Indikace
Catheter for short / medium-term haemodialysis or high volume infusions.
Popis
Triple lumen polyurethane catheter for haemodialysis and high volume infusions.Fully radiopaque catheter introduced by the Seldinger technique. Rotating fixation wings and polyurethane extension tubes with clamp. Centimetre graduations from 9 cm from the distal tip. The (green) hub of the distal lumen allows administration of drugs during haemodialysis. Flexible distal tip.
The clip allows the pigtails to be held in a curved position.
Tray presentation containing:
- 1 triple lumen catheter (XRO PUR)
- 1 introducer needle ø 1.1 x 1.4 mm Length 70 mm
- 1 graduated “J“ stainless steel (codes 1139.215 / 1139.220) or nitinol (codes 1139.51 / 1139.52) guidewire and guidewire advancer – Length 70 cm
- 2 caps
- 2 dilators
- 1 scalpel
- 1 clip for pigtails (only codes 1139.51/52)
- 1 cover drape 50 x 50 cm (codes 1139.215/220/240)
Reference a funkce
| Catheter | Distal lumen | Medial lumen | Proximal lumen | Guidewire | Balení | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kód | Length cm | Ø Fr | Prim. vol. ml | Flow rate ml/min | Ø G | Prim. vol. ml | Flow rate ml/min | Ø G | Prim. vol. ml | Flow rate ml/min | Ø G | Ext. Ø mm | Length mm | Jednotky/balení | Jednotky/karton |
| 1139.215 | 15 | 12 | 0.4 | 55 | 16 | 1.1 | 250 | 12 | 1.3 | 320 | 11 | 0.88 | 600 | 10 | 10 | |
| 1139.220 | 20 | 12 | 0.6 | 50 | 16 | 1.3 | 220 | 12 | 1.5 | 290 | 11 | 0.88 | 600 | 10 | 10 | |
| 1139.51 | 15 | 12 | 0.51 | 55 | 16 | 1.6 | 230 | 12 | 1.7 | 400 | 11 | 0.88 | 600 | 10 | 10 | |
| 1139.52 | 20 | 12 | 0.6 | 43 | 16 | 1.8 | 195 | 12 | 1.9 | 365 | 11 | 0.88 | 600 | 10 | 10 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
hemodynamic_management_catalogue
-
Návod k použití
