Epidural anaesthesia: Mini-sets
Mini-set with PERIBAX catheter
Popis
Mini-set for epidural anesthesia containing: 1 NRFit Tuohy needle 18G, 80mm long with transparent hub and removable wings with plastic stylet… Přečtěte si více
Indikace
Epidural anaesthesia / analgesia
Popis

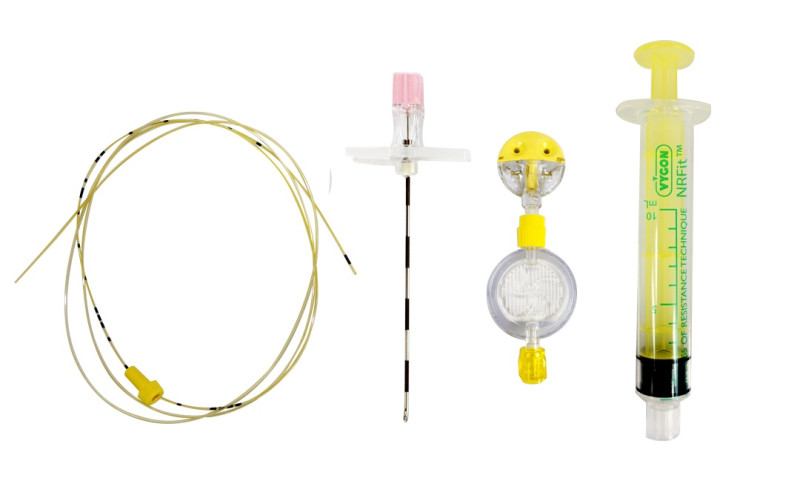

Mini-set for epidural anesthesia containing:- 1 NRFit Tuohy needle 18G, 80mm long with transparent hub and removable wings with plastic stylet. The needle has graduations every centimeter. The transparent hub allows to quickly visualize an accidental reflux of blood or of CSF.
- 1 PEBAX catheter (polyether blockamide), 20G, 90cm long. with closed distal end and 3 lateral eyes with flexible distal tip. The catheter has markings every centimetre from 5 to 20cm and a black mark at the distal end to ensure that the entire catheter has been withdrawn.
- A (yellow) catheter guide which connects onto the Tuohy needle facilitates the insertion of the catheter in the epidural space.
- 1 NRFIT connector type "Nexus" with pre-mounted filter 0.2 μm. Filter surface area: 5.25cm², priming volume: 0.3ml, pressure resistance: 5.2 bar.
- 1 NRFit "low resistance" plastic syringe 10ml,
- 1 Male cap,
- 1 yellow label epidural identification.
Reference a funkce
Syringe | Needle | Catheter | Balení | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Favourites | Kód | Volume ml | Gauge G | Length mm | Int. Ø mm | Ext. Ø mm | Length mm | Gauge G | Jednotky/balení | Jednotky/karton |
5191.3371A1 | 10 | 18 | 80 | 0.43 | 0.8 | 900 | 20 | 20 | 120 |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ano
Dokumentace
-
Catalogue Pain Management
-
Brochure NRFit
-
Návod k použití
