Accessories
Extension tubes
Popis
These Nutrifit™ extension tubes keep the feeding tube away from the syringe pump or from the feeding pump to improve the patient… Přečtěte si více
Indikace
Enteral nutrition
Popis

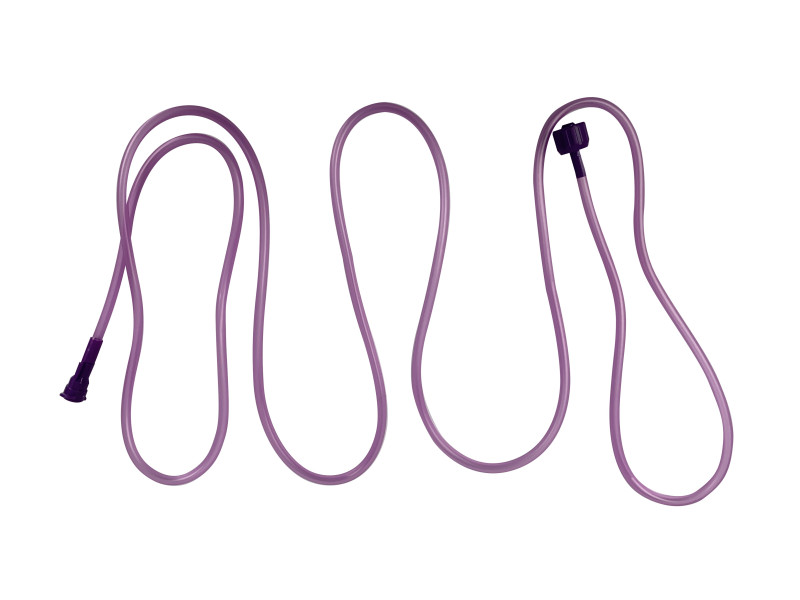

These Nutrifit™ extension tubes keep the feeding tube away from the syringe pump or from the feeding pump to improve the patient’s comfort.These devices include the ENFit® connectors, compliant with ISO 80369-3.
- Code 368.107 has a standard bore (Ø1.5x2.5mm) and a length of 100cm. There is a cap on the male ENFit® connector. The dead space is 1.90ml.
- Code 368.1071 has a standard bore (Ø1.5x2.5mm) and a length of 100cm. There is a cap on the male ENFit® connector. It is also available with a Robert clamp. The dead space is 1.90ml.
- Code 368.157 has a standard bore (Ø1.5x2.5mm) and a length of 150cm. There is a cap on the male ENFit® connector. The dead space is 2.80ml.
- Code 368.1571 has a standard bore (Ø1.5x2.5mm) and a length of 150cm. There is a cap on the male ENFit® connector. It is also available with a Robert clamp. The dead space is 2.80ml.
For information, it exists 3 others extension lines manufactured under Vygon S.A. CE mark:
- Code 368.097 has a standard bore (Ø1.5x2.5mm) and a length of 90cm. There is no cap. The dead space is 1.38ml.
- Code 368.1572 has a standard bore (Ø1.5x2.5mm) and a length of 150cm. There is no cap. The dead space is 2.30ml.
- Code 369.157 has a very large bore (Ø3.0x4.2mm) and a length of 150cm. There is no cap. The dead space is 9.9ml.
Reference a funkce
| Extension tube | Balení | |||||
|---|---|---|---|---|---|---|
| Favourites | Kód | Length cm | Int. Ø mm | Ext. Ø mm | Jednotky/balení | Jednotky/karton |
| 368.097 | 90 | 1.5 | 2.5 | 200 | 200 | |
| 368.107 | 100 | 1.5 | 2.5 | 45 | 270 | |
| 368.1071 | 100 | 1.5 | 2.5 | 45 | 270 | |
| 368.157 | 150 | 1.5 | 2.5 | 45 | 270 | |
| 368.1571 | 150 | 1.5 | 2.5 | 45 | 270 | |
| 368.1572 | 150 | 1.5 | 2.5 | 200 | 200 | |
| 369.157 | 150 | 3.0 | 4.2 | 200 | 200 | |
Další informace
-
Obsahuje latex Ne
-
Obsahuje živočišný produkt Ne
-
Bez pyrogenu Ne
